Why Choose the ILME CX01J8PIF RJ45 PROFINET Insert?

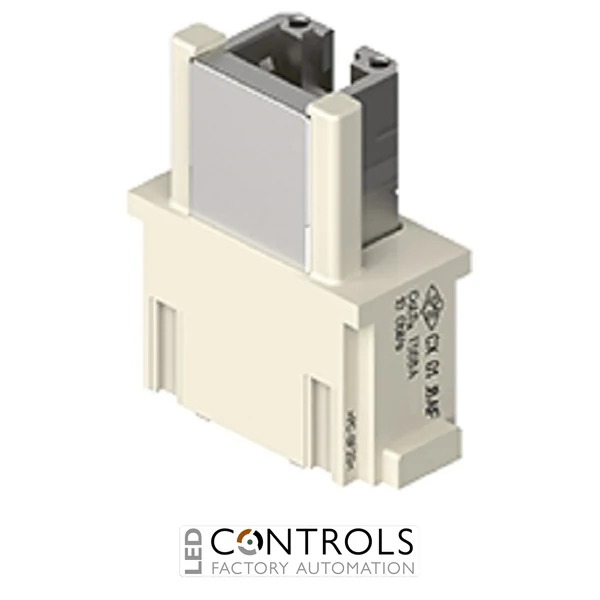

The ILME CX01J8PIF is a high-performance female RJ45 modular insert designed for industrial Ethernet and PROFINET connections in machinery, automation systems and control equipment. Part of the ILME MIXO Data series, it combines an 8-way shielded RJ45 interface with IDC termination in a compact single-module format for solderless field wiring.
Designed specifically with PROFINET contact coding, the CX01J8PIF supports Category 6A, Class EA data transmission with four twisted pairs and transmission rates up to 10 Gbit/s in accordance with IEEE 802.3an. The IDC termination system enables network conductors to be connected directly in the field without soldering, making installation efficient while retaining a robust industrial connector interface.
The CX01J8PIF occupies only one MIXO module and is rated at 1 A, 50 V with a 0.8 kV rated impulse withstand voltage. Its polycarbonate insulating body, UL 94 V-0 flammability rating and compatibility with suitable ILME enclosures make it a dependable solution for incorporating high-speed Ethernet connectivity into heavy-duty industrial connector assemblies.
Key Advantages
- RJ45 Cat. 6A female interface for high-speed industrial Ethernet connections.
- PROFINET contact coding specifically suited to industrial automation networks.
- Supports transmission rates up to 10 Gbit/s according to IEEE 802.3an.
- IDC termination enables solderless field wiring.
- Compact single-module MIXO format saves connector space.
- Shielded 8-way, four-pair data connection for reliable network communications.
- Can achieve high environmental protection when installed in a suitable ILME enclosure.
Key Features
- ILME MIXO Data series modular insert.
- Female RJ45 connector with 8-way shielded interface.
- Category 6A, Class EA data performance.
- PROFINET wiring configuration.
- Transmission rates up to 10 Gbit/s.
- IDC field termination.
- 1 A rated current.
- 50 V rated voltage.
- 0.8 kV rated impulse withstand voltage.
- One-module MIXO format.
- Polycarbonate insulating body with UL 94 V-0 flammability rating.
High-Speed PROFINET Connectivity for Industrial Automation
PROFINET is widely used to exchange real-time data between PLCs, distributed I/O, drives, sensors and other automation equipment. The CX01J8PIF allows this Ethernet connectivity to be incorporated into an ILME heavy-duty modular connector, providing a convenient detachable interface between machinery and control systems.
Its Cat. 6A performance supports data rates up to 10 Gbit/s, while IDC technology allows the network cable to be terminated directly without soldering. When installed in a compatible ILME MIXO frame and suitable enclosure, the module combines high-speed data connectivity with the mechanical and environmental protection required by demanding industrial installations.
Typical Applications
- PROFINET industrial automation networks.
- PLC and distributed I/O connections.
- Industrial Ethernet machinery interfaces.
- Robotics and automated production equipment.
- Packaging and processing machinery.
- Industrial control panels and modular connector systems.
