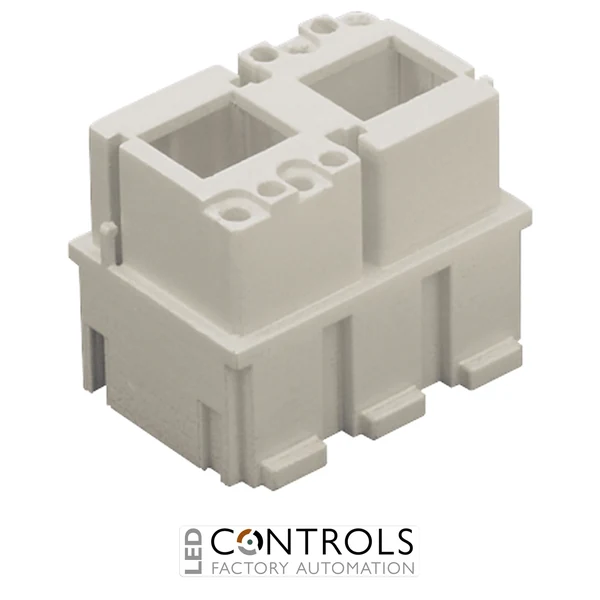

Why Choose the Ilme CX02JF Housing for 2 RJ45 Female Connectors?
The Ilme CX02JF is a versatile female MIXO Data modular insert and housing designed for integrating two RJ45 data connections together with auxiliary electrical contacts into Ilme heavy-duty multipole connector assemblies. Part of the Ilme MIXO Data series, this three-module insert provides accommodation for 2 female RJ45 connectors and 8 female 10 A crimp contacts.
Designed for industrial Ethernet, machinery and automation applications, the CX02JF allows data and auxiliary signal or power connections to be combined within a single modular connector assembly. The RJ45 connectors and 10 A contacts are ordered separately, allowing the insert to be configured for the specific installation while maintaining the flexibility of the Ilme MIXO modular system.
The CX02JF has electrical characteristics of 10 A, 250 V and 4 kV for its auxiliary contact system and provides three MIXO module slots of installation space. Its self-extinguishing thermoplastic construction, low contact resistance and mechanical durability make it well suited to demanding industrial installations where reliable data and electrical connectivity are required.
Key Advantages
- Combines 2 female RJ45 connectors and 8 auxiliary contacts within one modular insert.
- Compact 3-module MIXO Data construction.
- Supports 8 female 10 A crimp contacts for auxiliary connections.
- Allows Ethernet data and auxiliary circuits to be combined within one heavy-duty connector assembly.
- Compatible with selected Ilme CX series RJ45 female connectors.
- Self-extinguishing UL 94 V-0 thermoplastic construction for industrial applications.
Key Features
- Ilme MIXO Data series.
- Female modular insert / housing.
- 3 module width.
- Accommodation for 2 RJ45 female connectors.
- 8 auxiliary female contact positions.
- Designed for 10 A CDF series female crimp contacts.
- 10 A rated current for the auxiliary contact system.
- 250 V rated voltage for the auxiliary contact system.
- 4 kV rated impulse withstand voltage.
- Pollution degree 3.
- ≥ 10 GΩ insulation resistance.
- ≤ 3 mΩ contact resistance.
- Mechanical life of at least 500 mating cycles.
Combined Ethernet and Auxiliary Connectivity for Industrial Systems
The Ilme MIXO modular system allows data, signal and power connections to be combined within a single heavy-duty industrial connector. This can reduce the number of separate connectors required on machinery while simplifying installation, maintenance and disconnection of complex equipment.
The CX02JF is particularly useful where multiple Ethernet interfaces and auxiliary circuits must pass through the same connector assembly. Its capacity for two female RJ45 connectors plus eight 10 A auxiliary contacts provides a flexible interface for industrial networking, machine controls, sensors and other electrical circuits.
Typical Applications
- Industrial Ethernet and network connections.
- Factory automation and production machinery.
- Industrial computers, PLCs and HMIs.
- Machine vision and inspection systems.
- Control cabinets and machine interfaces.
- Ilme MIXO modular connector assemblies requiring combined data and auxiliary circuits.
