Why Choose the ILME CX034BF 3-Pole 40 A Female MIXO Modular Insert?

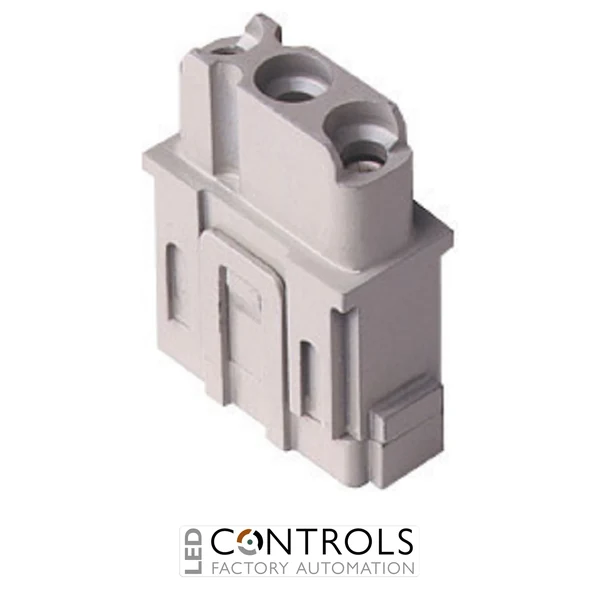

The ILME CX034BF is a compact 3-pole female modular insert designed for high-current electrical connections within the ILME MIXO heavy-duty modular connector system. Using reliable crimp termination, this insert provides a flexible solution for transmitting power through industrial machinery, automation equipment and electrical control systems.
The CX034BF is rated at 40 A and 500 V and occupies just one MIXO module. Its three-pole configuration delivers substantial current capacity in a compact format, making it particularly useful where installation space is limited while robust power connectivity is required.
Designed for crimp connection, the CX034BF is supplied without contacts so suitable female crimp contacts can be selected separately for the application and conductor size. Its durable polycarbonate construction, UL 94 V-0 flammability classification and operating temperature range of -40 °C to +125 °C support dependable use in demanding industrial environments.
Key Advantages
- Compact 3-pole female MIXO modular insert for industrial power connections.
- 40 A current rating suitable for demanding electrical loads.
- 500 V rated voltage for industrial power applications.
- Occupies only one MIXO module slot for space-efficient connector assemblies.
- Crimp termination provides a secure and dependable electrical connection.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- ILME MIXO series.
- 3-pole female modular insert.
- 40 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- Crimp connection technology.
- 1-module width.
- Durable polycarbonate insulating body.
- UL 94 V-0 flammability classification.
Compact High-Current Connectivity for Industrial Equipment
The ILME MIXO system enables different power, signal, data and other connection technologies to be combined within a single heavy-duty connector assembly. The CX034BF provides three high-current female connection positions within only one module, allowing designers to create compact connector configurations without sacrificing electrical performance.
Crimp contacts are selected separately to suit the required conductor cross-section, enabling the connector assembly to be configured for the wiring used in the application. This modular approach simplifies machine design and maintenance while providing a robust detachable connection for industrial power circuits.
Typical Applications
- Industrial machinery and production equipment.
- Motor and drive power connections.
- Factory automation systems.
- Robotics and automated manufacturing equipment.
- Electrical control panels and cabinets.
- Industrial power distribution interfaces.
- Heavy-duty modular connector assemblies.
