Why Choose the ILME CX04RF Female Coaxial Modular Insert?

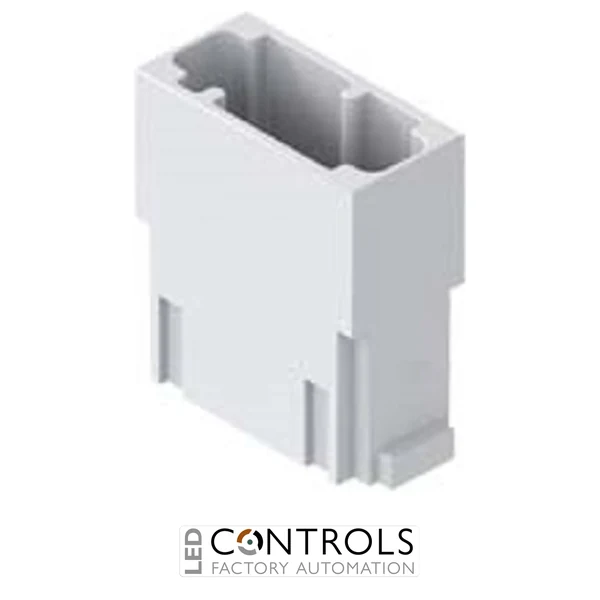

The ILME CX04RF is a compact female coaxial modular insert designed for reliable high-frequency signal connections within heavy-duty industrial connector assemblies. Part of the ILME MIXO Data series, it provides 4 positions for coaxial contacts while occupying only one module within a compatible MIXO frame.
Designed for crimp coaxial contacts, the CX04RF enables coaxial signal circuits to be incorporated alongside compatible power, control, data and pneumatic modules within a single modular connector. Compatible ILME CX R contacts are available for both 50 Ω and 75 Ω coaxial cables, allowing the connector configuration to be matched to the communication or signal system.
The CX04RF is rated at 1.5 A and 50 V according to EN 61984 and supports signal frequencies from DC to 6 GHz. Its polycarbonate construction, UL 94 V-0 flame rating and mechanical life of at least 500 mating cycles make it suitable for demanding industrial installations requiring dependable detachable coaxial connections.
Key Advantages
- Compact female coaxial insert for ILME MIXO Data systems.
- Provides 4 positions for coaxial contacts within a single module.
- Supports compatible 50 Ω and 75 Ω coaxial contacts.
- Frequency capability from DC to 6 GHz for high-frequency signal applications.
- Crimp contact system provides secure and repeatable cable termination.
- Allows coaxial connections to be combined with compatible power, signal, data and pneumatic MIXO modules.
Key Features
- ILME MIXO Data series.
- Female modular insert.
- 4 coaxial contact positions.
- 1-module MIXO format.
- Designed for separately ordered crimp coaxial contacts.
- Compatible with ILME CX 50 RF 50 Ω and CX 75 RF 75 Ω female coaxial contacts.
- 1.5 A, 50 V EN 61984 rating.
- Frequency range from DC to 6 GHz.
- Polycarbonate construction with UL 94 V-0 flame rating.
- Mechanical durability of at least 500 mating cycles.
Reliable Coaxial Signal Connections for Industrial Systems
Coaxial connections are widely used where controlled impedance and reliable transmission of high-frequency signals are required. The ILME CX04RF provides four coaxial contact positions within a compact MIXO module and supports frequencies from DC to 6 GHz, making it suitable for industrial communication, instrumentation, video and other signal applications.
The modular MIXO design allows the CX04RF to be installed alongside other compatible connection technologies within the same heavy-duty connector assembly. Separately ordered 50 Ω or 75 Ω female coaxial contacts can be selected for the required cable type, providing a configurable and serviceable solution for industrial equipment.
Typical Applications
- Industrial coaxial signal connections.
- Factory automation and production machinery.
- High-frequency communication equipment.
- Industrial instrumentation and measurement systems.
- Video, monitoring and signal transmission equipment.
- Heavy-duty modular connectors combining coaxial, power and control connections.
