Why Choose the Ilme CX06CYF 6-Pole MIXO Female AXYR® Modular Insert?

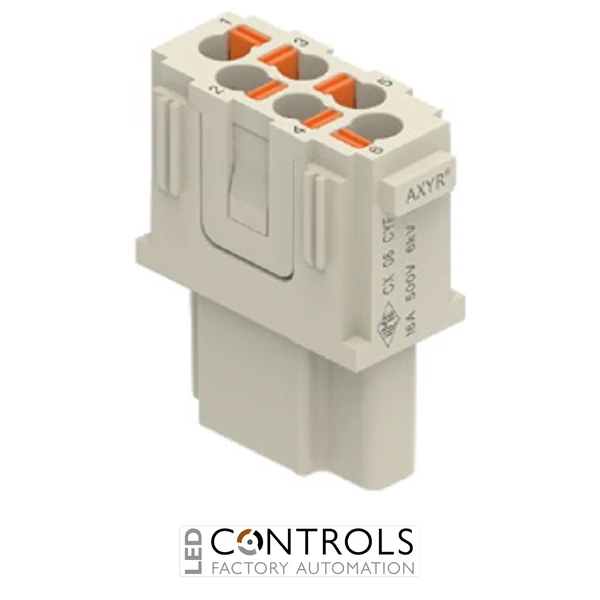

The Ilme CX06CYF is a compact 6-pole female modular insert designed for fast, reliable industrial wiring within Ilme MIXO multipole connector systems. Part of the Ilme MIXO series, it features Ilme's AXYR® high-density spring push-in terminal technology, allowing conductors to be terminated without traditional screw or crimp connections.
Designed for industrial machinery, automation and control applications, the CX06CYF provides six female contacts within just one MIXO module and is rated at 16 A and 500 V. Its AXYR® connection system accepts unferruled conductors from 0.25 mm² to 4 mm² and ferruled conductors up to 2.5 mm², providing a convenient solution for both production wiring and field installation.
The CX06CYF uses turned silver-plated contacts and glass-reinforced polycarbonate insulation with a UL 94 V-0 flammability rating. With a wide -40 °C to +125 °C operating temperature range and protection up to IP65 / IP66 / IP68 / IP69 when installed in a suitable enclosure, it is engineered for dependable service in demanding industrial environments.
Key Advantages
- AXYR® push-in spring terminals provide fast conductor termination without specialist crimp tooling.
- Compact 6-pole female insert occupies only one MIXO module.
- 16 A, 500 V rating suits a wide range of industrial power and control circuits.
- Accepts unferruled conductors up to 4 mm².
- Turned silver-plated contacts provide reliable electrical performance.
- Wide -40 °C to +125 °C operating temperature range for demanding environments.
Key Features
- Ilme MIXO modular connector series.
- 6-pole female modular insert.
- 1 module width.
- AXYR® high-density spring push-in terminal connection.
- Tool-free conductor connection.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- 600 V rated voltage according to UL/CSA.
- Turned silver-plated contacts.
- Glass-reinforced polycarbonate insulating construction.
- Mechanical life of at least 500 mating cycles.
- Wide -40 °C to +125 °C operating temperature range.
AXYR® technology provides a high-density spring push-in termination system designed to simplify industrial connector wiring. Conductors can be connected directly to the integrated terminals without separate crimp contacts or screw tightening, helping reduce installation time and eliminating the need for dedicated crimping tools during connector assembly.
The Ilme CX06CYF combines this tool-free termination technology with six female contacts in a compact single-module MIXO format. Its 16 A current rating, 500 V operating voltage and support for conductors up to 4 mm² make it a versatile choice for industrial power, control and auxiliary circuits where efficient installation and dependable connectivity are required.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Power and control circuit connections.
- Control cabinets and machine interfaces.
- OEM equipment and machine building.
- Applications requiring rapid tool-free field wiring.
- Ilme MIXO modular connector assemblies.
