Why Choose the ILME CX06CYM Male MIXO AXYR Modular Insert?

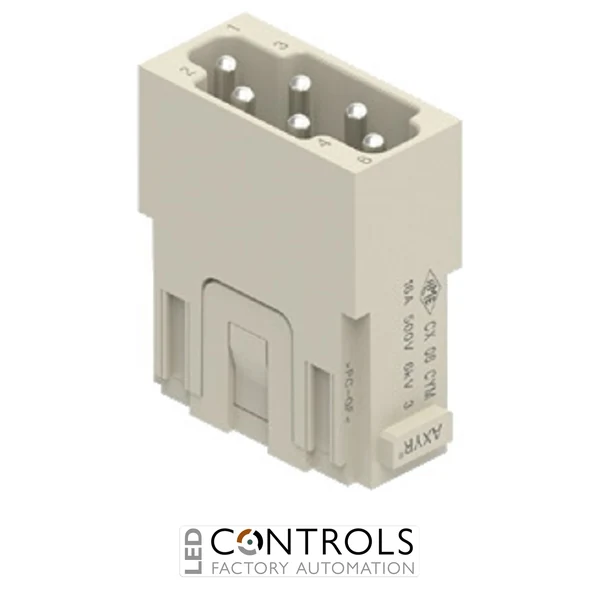

The ILME CX06CYM is a compact 6-pole male modular insert designed for reliable electrical connections in heavy-duty industrial connector systems. Part of the ILME MIXO series, it combines a 16 A, 500 V electrical rating with ILME's AXYR® high-density spring terminal technology, providing fast conductor termination without conventional screw terminals or crimp contacts.
The AXYR® push-in connection allows suitable conductors to be inserted directly into the built-in contacts, helping simplify wiring and reduce assembly time. The CX06CYM accommodates unprepared conductors from 0.25–4 mm² and prepared conductors up to 2.5 mm², making it a versatile choice for industrial power and control wiring.
Despite providing 6 male poles, the CX06CYM occupies only 1 MIXO module. This compact format allows it to be combined with compatible MIXO power, signal, data and pneumatic modules within a suitable frame, enabling customised heavy-duty connector configurations for machinery and automation equipment.
Key Advantages
- Compact 6-pole male MIXO modular insert for industrial connector systems.
- 16 A, 500 V rating for power and control applications.
- ILME AXYR® high-density spring push-in terminals enable tool-free conductor connection.
- Accepts unprepared conductors from 0.25–4 mm².
- Occupies only 1 MIXO module for space-efficient connector configurations.
- Built-in silver-plated contacts eliminate the need to select and install separate crimp contacts.
Key Features
- ILME MIXO modular connector series.
- 6-pole male configuration.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- AXYR® high-density spring terminal connection without tools.
- 0.25–4 mm² conductor range for unprepared wires.
- 0.25–2.5 mm² conductor range for prepared wires.
- Built-in silver-plated copper-alloy contacts.
- Mechanical durability of at least 500 mating cycles.
ILME AXYR® technology uses high-density spring terminals to provide fast and secure conductor termination without screws or separate crimp contacts. This helps streamline connector assembly while maintaining consistent contact pressure, making the system particularly useful for machine builders and panel builders handling repetitive industrial wiring.
The CX06CYM combines six 16 A connections within a single MIXO module and is designed for installation in compatible MIXO frames and enclosures. Its modular construction allows power and control circuits to be combined with other MIXO connection technologies, providing a configurable interface for industrial equipment that may need to be installed, disconnected or serviced efficiently.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Control panels and electrical cabinets.
- Conveyor and material handling systems.
- Packaging and processing machinery.
- Modular heavy-duty connector assemblies for power and control circuits.
