Why Choose the ILME CX06PCF Female MIXO Modular Insert?

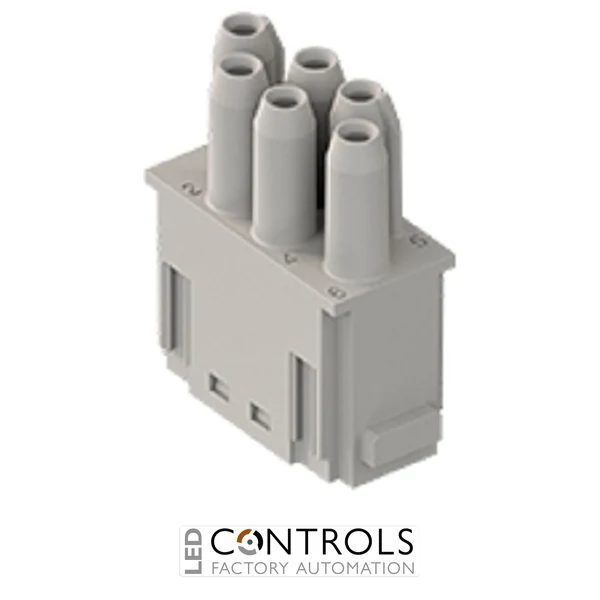

The ILME CX06PCF, manufacturer part number CX 06P CF, is a compact 6-pole female modular insert designed for reliable power and signal connections in heavy-duty industrial connector assemblies. Part of the versatile ILME MIXO series, this protected 6-pole module combines a 16 A current rating with an elevated 830 V rated voltage.
The CX06PCF uses a crimp connection and is supplied without contacts, allowing compatible ILME 16 A female crimp contacts to be selected separately for the required conductor size and application. Crimp termination provides a secure, vibration-resistant electrical connection and is particularly suitable for production machinery, automation equipment and other industrial installations requiring dependable detachable wiring.
Occupying only 1 MIXO module, the CX06PCF provides six protected contact positions while retaining the configuration flexibility of the MIXO system. It is rated 16 A, 830 V, 8 kV with pollution degree 3 according to EN 61984 and can be combined with other compatible MIXO power, signal, data and pneumatic modules within suitable ILME frames and enclosures.
Key Advantages
- Compact 6-pole female MIXO modular insert for industrial connector systems.
- 16 A, 830 V rating for demanding power and signal circuits.
- 8 kV rated impulse withstand voltage with pollution degree 3.
- Reliable crimp connection suitable for industrial machinery and automation wiring.
- Occupies only 1 MIXO module, supporting space-efficient connector configurations.
- Compatible female crimp contacts can be selected separately to suit the required conductor size.
Key Features
- ILME MIXO modular connector series.
- 6-pole female configuration.
- 16 A rated current.
- 830 V rated voltage.
- 8 kV rated impulse withstand voltage.
- Crimp contact connection.
- 1-module MIXO format.
- Standard and HNM (High Number of Matings) specification.
- Polycarbonate construction with UL 94 V-0 flammability rating.
- Operating temperature range from -40 °C to +125 °C.
- Mechanical durability of at least 500 mating cycles.
- Female contacts are ordered separately.
Reliable Crimp Connections for Industrial Machinery
Crimp termination provides a mechanically secure and electrically consistent connection without relying on terminal screws. When correctly assembled using suitable ILME contacts and approved crimping equipment, the connection is well suited to machinery and automation installations exposed to vibration, repeated operation and demanding industrial conditions.
The CX06PCF combines six protected 16 A contact positions with an 830 V rating in a single MIXO module. Installed in a suitable MIXO frame and enclosure, it can form part of a customised heavy-duty connector combining power, control, signal, data or pneumatic services while allowing machinery to be connected and disconnected efficiently for installation and maintenance.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Power and control circuits.
- Control panels and electrical cabinets.
- Packaging, processing and assembly machinery.
- Conveyor and material handling equipment.
- Modular heavy-duty connector assemblies requiring elevated voltage capability.
