Why Choose the ILME CX06PCM Male Modular Insert?

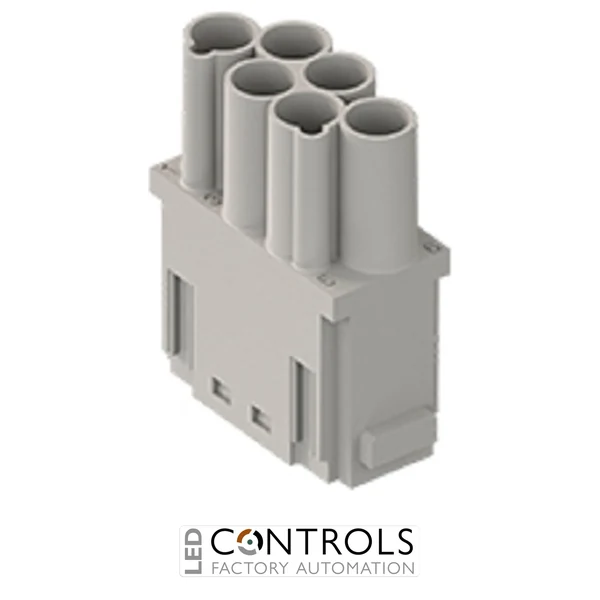

The ILME CX06PCM, also identified as CX 06P CM, is a protected 6-pole male modular insert from the ILME MIXO series, designed for reliable power and control connections in heavy-duty industrial connector assemblies. Its compact 1-module format enables six electrical connections to be incorporated efficiently into configurable MIXO frames used throughout machinery, automation and production equipment.
Rated at 16 A and 830 V, the CX06PCM provides an 8 kV rated impulse withstand voltage and pollution degree 3 performance. It uses crimp connections with separately ordered male contacts, providing secure conductor termination and allowing the appropriate contact size and plating to be selected for the application.
The CX06PCM is manufactured from durable polycarbonate with a UL 94 V-0 flammability rating and operates across a wide temperature range of -40 °C to +125 °C. Designed for both standard and HNM applications, it offers at least 500 mating cycles and can form part of a highly protected connector assembly when installed in a suitable ILME enclosure.
Key Advantages
- 6-pole male modular insert for industrial power and control circuits.
- 16 A, 830 V rating for demanding electrical applications.
- 8 kV impulse withstand voltage with pollution degree 3.
- Compact 1-module MIXO footprint maximises connector configuration flexibility.
- Crimp termination provides secure and repeatable conductor connections.
- Protected insert design for increased connection safety.
- At least 500 mating cycles for dependable repeated connection and disconnection.
- Integrates with other MIXO modules for customised power, control, signal and data assemblies.
Key Features
- ILME MIXO series modular insert.
- Male configuration.
- 6 poles.
- Crimp connection.
- 16 A rated current.
- 830 V rated voltage.
- 8 kV rated impulse withstand voltage.
- 1-module MIXO size.
- Standard & HNM specification.
- Insulation resistance of at least 10 GΩ.
- Contact resistance of no more than 1 mΩ.
- Polycarbonate construction with UL 94 V-0 flammability performance.
Compact 830 V Modular Connectivity for Industrial Equipment
The ILME MIXO system enables power, control, signal, data and other connection technologies to be combined within configurable heavy-duty connector assemblies. The CX06PCM provides six protected male electrical positions in only one module, making it particularly useful where a high connection density and an 830 V rating are required.
The insert uses separately ordered crimp contacts, allowing suitable contact sizes and finishes to be selected for the installation. Once assembled in an appropriate MIXO frame and ILME enclosure, the CX06PCM provides a robust detachable electrical interface for industrial machinery and automation systems.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Motor, drive and actuator connections.
- Electrical control panels and switchgear.
- Robotics and automated manufacturing systems.
- Modular heavy-duty connector assemblies requiring compact 830 V connections.
