Why Choose the ILME CX08CYF Female MIXO AXYR Modular Insert?

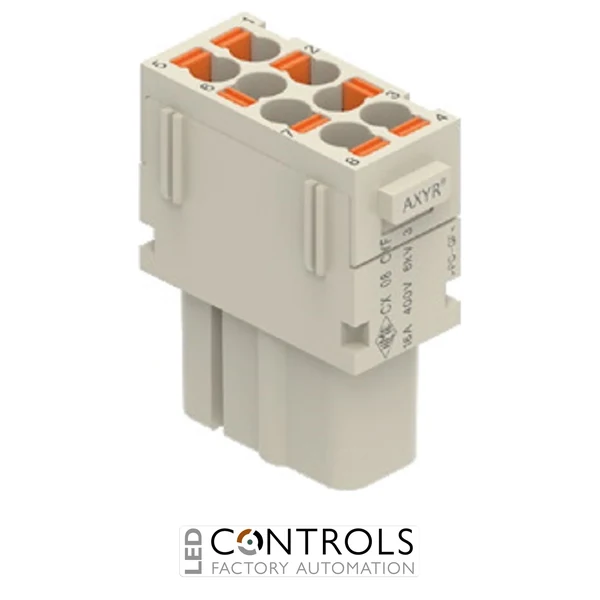

The ILME CX08CYF is a compact female MIXO modular insert featuring ILME's AXYR® high-density spring push-in connection technology for fast, reliable conductor termination without specialist tools. Part of the ILME MIXO modular connector series, it provides eight poles within a single module and is designed for industrial machinery, automation and heavy-duty connector applications.
The CX08CYF is rated at 16 A and 400 V according to EN 61984, with a rated impulse withstand voltage of 6 kV and pollution degree 3. Its AXYR® push-in terminals simplify assembly by allowing conductors to be connected directly to the built-in contacts, eliminating the separate crimp contacts and crimping tools required by conventional crimp modules.
Featuring 8 female poles within a compact 1-module format, the CX08CYF accepts conductors from 0.25–4 mm² depending on conductor preparation. Built-in turned silver-plated contacts, a durable polycarbonate body and a mechanical life of at least 500 mating cycles make it a practical solution for configurable industrial connector systems.
Key Advantages
- Tool-free AXYR® high-density spring push-in connection simplifies wiring and installation.
- Compact 8-pole female modular insert occupies only one MIXO module.
- 16 A current rating suitable for industrial power and control circuits.
- 400 V rated voltage with 6 kV impulse withstand capability.
- Accepts conductors up to 4 mm² without requiring separately purchased crimp contacts.
- Built-in silver-plated contacts provide dependable electrical connectivity.
Key Features
- ILME MIXO modular connector series.
- AXYR® high-density spring terminal technology.
- 8-pole female modular insert.
- 16 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Compact 1-module MIXO format.
- Conductor range of 0.25–4 mm².
- Built-in turned silver-plated copper-alloy contacts.
- Minimum 500 mating cycles.
Fast Tool-Free Connections for Industrial Equipment
ILME AXYR® technology uses high-density spring push-in terminals to simplify conductor termination within industrial connector assemblies. Suitable conductors can be inserted directly into the terminal mechanism, reducing wiring time while maintaining a secure electrical connection for machinery and automation applications.
The CX08CYF combines this tool-free termination system with the flexibility of the MIXO modular platform. Power, control, signal and specialist modules can be arranged within compatible MIXO frames and enclosures, allowing machine builders and panel designers to create compact connector assemblies tailored to individual equipment requirements.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Power and control circuit connections.
- Motor and drive connection systems.
- Robotics and material handling equipment.
- Configurable heavy-duty industrial connector assemblies.
