Why Choose the ILME CX08D5M2 Male MIXO Megabit Modular Insert?

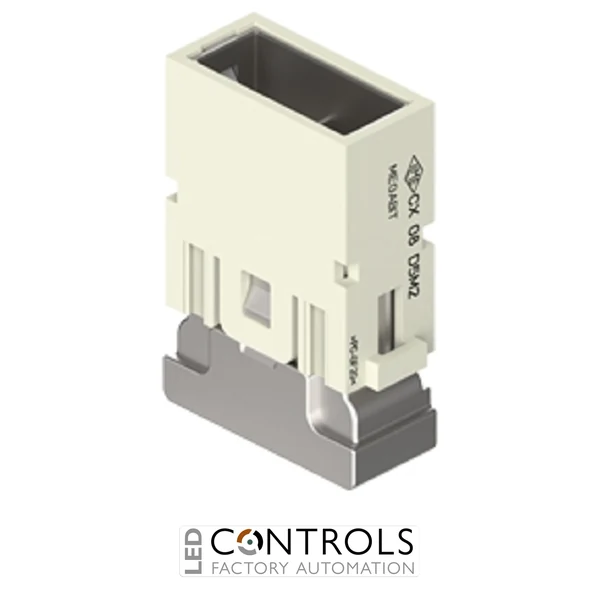

The ILME CX08D5M2 is a fully shielded 8-pole male modular data insert with crimp connections, designed for reliable industrial Ethernet and high-speed data transmission within the ILME MIXO modular connector system. As part of the specialised ILME MIXO Megabit series, it combines eight electrical contacts with shielding and two cable entries in a compact single-module format.
Designed for Category 5e, Class D data transmission, the CX08D5M2 supports frequencies up to 100 MHz and data rates up to 100 Mbit/s. The double cable-entry configuration is particularly suited to two 2-pair shielded data cables, while the fully shielded construction helps protect data signals against electromagnetic interference in electrically demanding industrial environments.
The CX08D5M2 is rated at 10 A and 50 V, with a rated impulse withstand voltage of 0.8 kV. It uses separately ordered ILME CD series crimp contacts for conductor sizes from 0.14–2.5 mm² (AWG 26–14), providing a robust and serviceable connection solution for industrial Ethernet, machinery and automation networks.
Key Advantages
- Fully shielded MIXO Megabit modular insert for industrial Ethernet.
- 8 poles plus shield connection in a compact single-module format.
- Supports Category 5e, Class D data transmission.
- Designed for frequencies up to 100 MHz and data rates up to 100 Mbit/s.
- Two cable entries provide flexible termination for shielded data cabling.
- 10 A, 50 V electrical rating with 0.8 kV impulse withstand voltage.
- Crimp termination provides secure and reliable industrial connections.
- Shielding is electrically separated from the PE circuit of the MIXO frame.
Key Features
- ILME MIXO Megabit series.
- Male 8-pole plus shield modular insert.
- Crimp connection with shield.
- Two cable entries.
- Single-module size.
- 10 A rated current.
- 50 V rated voltage.
- 0.8 kV rated impulse withstand voltage.
- Category 5e, Class D performance up to 100 MHz.
- Data transmission rate up to 100 Mbit/s.
- Compatible with ILME CD series crimp contacts for 0.14–2.5 mm² conductors.
- ≥500 mating cycles for dependable industrial operation.
Reliable Megabit Ethernet Connectivity for Industrial Automation
The ILME MIXO Megabit range is designed to integrate shielded data transmission into modular heavy-duty connector assemblies. The CX08D5M2 provides eight contacts plus shielding for Category 5e Ethernet connections, supporting frequencies up to 100 MHz and data transmission rates up to 100 Mbit/s for industrial communication networks.
Its fully shielded design helps maintain signal integrity in environments containing motors, drives, switching equipment and other potential sources of electromagnetic interference. The CX08D5M2 version provides two cable entries and has its shield electrically separated from the protective earth circuit of the MIXO frame, allowing the shielding arrangement to be configured appropriately for the installation.
Typical Applications
- Industrial Ethernet and machine communication networks.
- PLC and distributed automation systems.
- Robotics and automated production equipment.
- Packaging and processing machinery.
- Machine tools and manufacturing systems.
- Industrial control and monitoring equipment.
- OEM machinery requiring shielded data connectivity.
