Why Choose the Ilme CX08I6GM 8-Pole MIXO Gigabit Male Shielded Modular Insert?

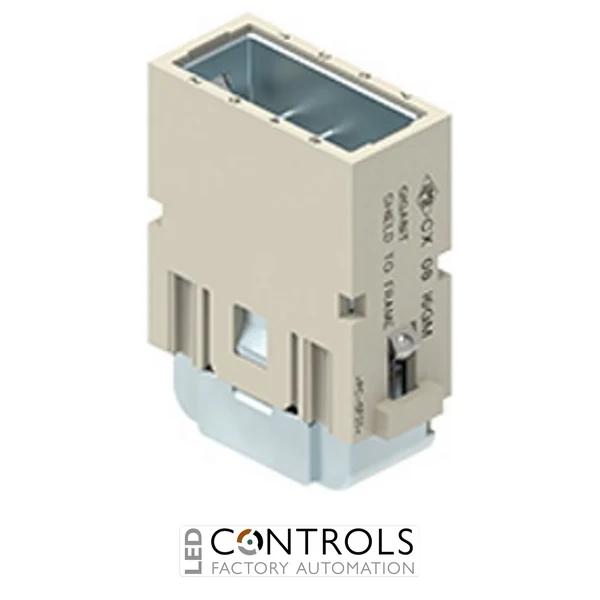

The Ilme CX08I6GM is a specialised 8-pole male shielded modular insert designed for reliable industrial data connections within Ilme MIXO multipole connector systems. Part of the Ilme MIXO Gigabit series, it combines eight male crimp contact positions with shielding and an additional PE connection in a compact single-module format.
Designed for industrial networking, machinery and automation applications, the CX08I6GM is rated at 5 A and 50 V with a 0.8 kV rated impulse withstand voltage. Its shield is electrically connected to the PE circuit of the MIXO frame by dual stainless-steel springs on the insert, helping maintain effective shield bonding through the connector assembly in electrically demanding environments.
The CX08I6GM is supplied without contacts, allowing suitable male crimp contacts to be selected separately for the application. Its polycarbonate construction and zinc-alloy shield, mechanical life of at least 500 mating cycles and wide -40 °C to +85 °C operating temperature range make it a robust solution for industrial Gigabit connectivity.
Key Advantages
- Specialised 8-pole male MIXO Gigabit modular insert for industrial data connectivity.
- Shielded crimp connection supports dependable data transmission in electrically noisy environments.
- Shield electrically connected to the PE circuit of the MIXO frame.
- Dual stainless-steel springs provide effective shield-to-PE bonding.
- Compact 1-module format maximises flexibility within MIXO connector assemblies.
- At least 500 mating cycles for dependable repeated connection and disconnection.
Key Features
- Ilme MIXO Gigabit series.
- 8-pole male modular insert.
- 1 module width.
- Crimp connection with shield.
- Additional PE connection.
- Shield electrically bonded to the PE circuit of the MIXO frame.
- Dual stainless-steel springs provide shield bonding to the frame.
- 5 A rated current.
- 50 V rated voltage.
- 0.8 kV rated impulse withstand voltage.
- ≥ 10 GΩ insulation resistance.
- ≤ 4 mΩ contact resistance.
- Polycarbonate construction with zinc-alloy shielding.
- UL 94 V-0 flammability rating.
- Wide -40 °C to +85 °C operating temperature range.
Shielded Gigabit Connectivity for Industrial Networks
Industrial data networks frequently operate alongside motors, variable frequency drives, switching devices and other equipment capable of producing electromagnetic interference. Shielded connector systems help maintain signal integrity by continuing the cable shielding through the connection interface and providing an effective bonding path within the equipment installation.
The Ilme CX08I6GM provides eight male contact positions plus shielding and an additional PE connection within a single MIXO module. Unlike versions where the shield is electrically separated from the MIXO frame PE circuit, the CX08I6GM uses dual stainless-steel springs to establish electrical contact between the shield and the PE circuit, making it particularly suitable for installations requiring direct shield bonding.
Typical Applications
- Industrial Ethernet and Gigabit data connections.
- Factory automation and production machinery.
- PLC, HMI and industrial computer networks.
- Machine vision and inspection systems.
- Robotics and automated manufacturing equipment.
- Shielded machine-to-machine communication interfaces.
- Industrial installations requiring shield-to-PE bonding.
- Ilme MIXO modular connector assemblies.
