Why Choose the Ilme CX10MPQM Male Metal Pneumatic Contact?

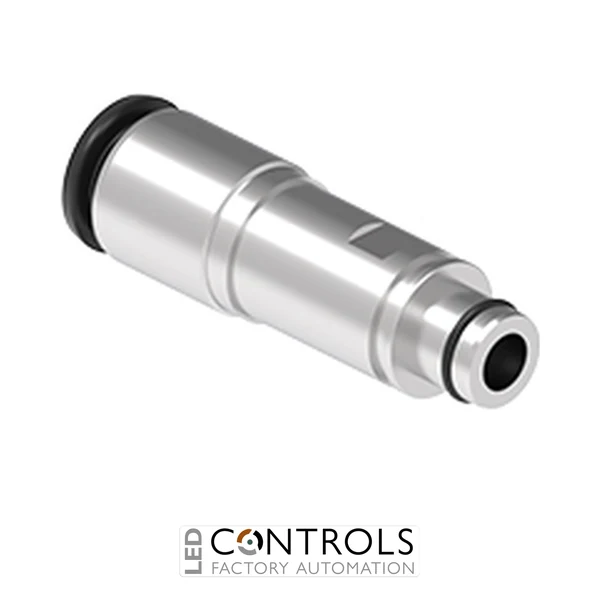

The Ilme CX10MPQM is a robust male metal pneumatic contact designed for compressed-air connections within Ilme MIXO modular heavy-duty connector systems. Featuring a straight quick-fitting connection for 10 mm outside-diameter pneumatic tube, it provides a convenient push-in tube connection for machinery, automation and industrial pneumatic applications.
Part of the Ilme MIXO pneumatic range, the CX10MPQM is a removable contact designed for installation in compatible pneumatic modular inserts. Its metal construction provides the durability required for industrial service, while the quick-fitting tube attachment simplifies pneumatic line installation without requiring a conventional hose-barb connection.
The CX10MPQM is the male version without a shut-off valve. It is designed for 10 mm OD tubing and can be installed in the compatible CX02MPBM male two-seat MIXO pneumatic module, allowing pneumatic services to be incorporated into configurable heavy-duty connector assemblies alongside other compatible MIXO connection technologies.
Key Advantages
- Robust male metal pneumatic contact for industrial connector systems.
- Designed for pneumatic tube with a 10 mm outside diameter.
- Quick-fitting push-in connection simplifies tube installation.
- Straight contact design for compatible MIXO pneumatic modules.
- Without shut-off valve for unrestricted pneumatic connection when coupled.
- Removable design allows the contact to be replaced without damaging the compatible module.
- Enables pneumatic services to be incorporated into Ilme MIXO modular connector assemblies.
Key Features
- Ilme MIXO pneumatic connector range.
- Male pneumatic contact.
- Metal construction.
- Straight contact configuration.
- 10 mm tube outside diameter.
- Quick-fitting / push-in tube connection.
- No shut-off valve.
- Removable contact design.
- Compatible with the CX02MPBM male MIXO pneumatic module.
- Suitable for hoods with vertical cable outlets and bulkhead-mounting housings when installed as part of the appropriate pneumatic assembly.
- Dedicated CMPES B removal tool can be used for contact removal.
Reliable Modular Pneumatic Connectivity
The Ilme MIXO pneumatic system enables compressed-air lines to be incorporated into the same modular connector concept used for industrial machinery interfaces. The CX10MPQM provides a 10 mm OD quick-fitting male connection, allowing suitable pneumatic tubing to be pushed directly into the contact for convenient installation.
When fitted into a compatible CX02MPBM module and appropriate MIXO connector assembly, the CX10MPQM enables pneumatic connections to be grouped with other machine services in a configurable interface. Its removable construction also supports servicing, as the contact can be extracted using the dedicated Ilme removal tool without damaging the module or contact.
Typical Applications
- Industrial pneumatic systems.
- Factory automation equipment.
- Pneumatic actuators and cylinders.
- Production and packaging machinery.
- Robotics and automated handling systems.
- Machine air distribution connections.
- Detachable machinery service interfaces.
- OEM equipment using MIXO modular connectors.
