Why Choose the ILME CX20SIM Male 20-Pole Shielded Signal Module?

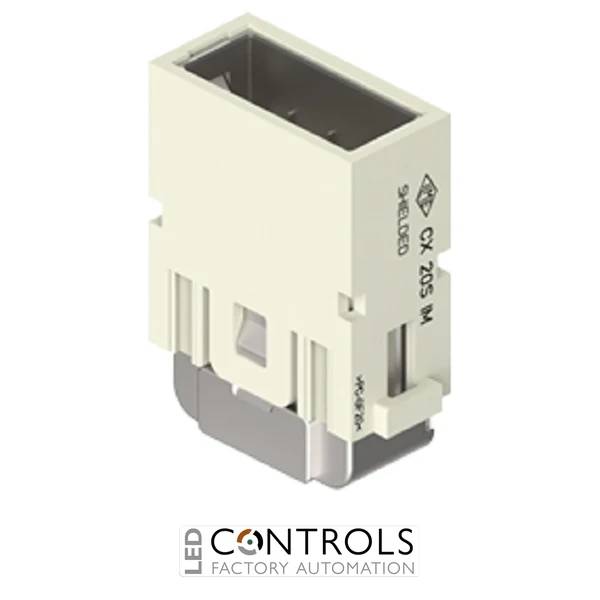

The ILME CX20SIM is a high-density 20-pole male shielded signal modular insert designed for reliable low-current signal transmission within ILME MIXO modular heavy-duty connector assemblies. Rated at 4 A and designed for crimp contact termination, it provides a compact connection solution for industrial automation, instrumentation and machinery requiring multiple signal circuits.
As part of the ILME MIXO CX modular connector system, the CX20SIM allows signal connections to be combined with compatible power, data, pneumatic and other modules within a single industrial connector. This modular approach enables machine builders to configure connector assemblies around the precise combination of services required while reducing the number of separate interfaces on machinery and control equipment.
The CX20SIM features a shielded construction intended to support signal integrity and electromagnetic compatibility in electrically demanding environments. Combined with secure crimp termination and its high-density 20-pole arrangement, the module is particularly suitable for screened signal circuits used in sophisticated industrial control and automation installations.
Key Advantages
- High-density 20-pole male signal module for industrial connector assemblies.
- 4 A rated current suitable for low-current signal and control circuits.
- Shielded design supports signal integrity in electrically noisy environments.
- Crimp termination provides secure and repeatable conductor connections.
- Part of the flexible ILME MIXO modular connector system.
- Allows signal connections to be combined with other services in one heavy-duty connector assembly.
Key Features
- ILME MIXO CX signal module.
- 20-pole configuration.
- Male modular insert.
- 4 A rated current.
- Crimp contact termination.
- Shielded module construction.
- High-density format for compact industrial interfaces.
- Designed for compatible ILME MIXO modular frames and connector housings.
Shielded Signal Connectivity for Industrial Automation
Industrial control systems frequently carry numerous low-level signals between sensors, actuators, controllers and instrumentation. The ILME CX20SIM provides twenty signal positions within a compact modular interface, enabling these circuits to pass through a detachable heavy-duty connector while maintaining an organised and serviceable machine connection.
Shielding is particularly valuable where signal wiring is installed close to motors, drives, switching equipment or other potential sources of electromagnetic interference. By combining shielded signal connectivity with the flexibility of the MIXO system, the CX20SIM helps engineers create compact multi-service interfaces for demanding automation installations.
Typical Applications
- Industrial automation and control systems.
- Screened sensor and actuator circuits.
- Instrumentation and measurement equipment.
- Robotics and automated handling systems.
- Packaging and production machinery.
- Combined power, signal and data connector assemblies.
