Why Choose the ILME CX4JM Male RJ45 4-Data-Contact Connector?

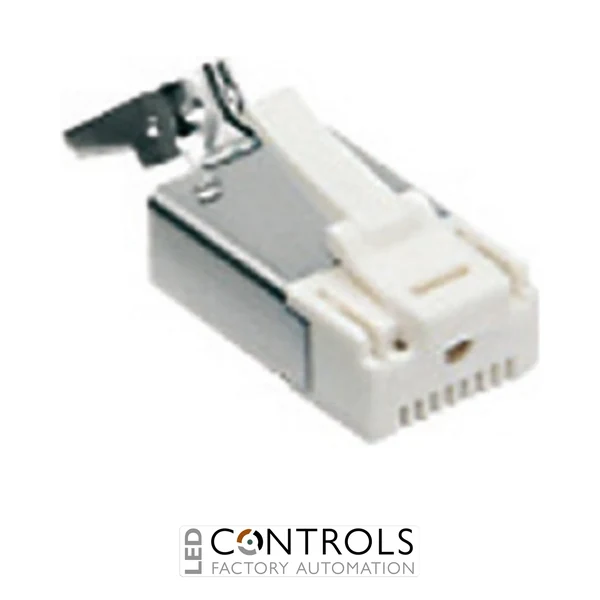

The ILME CX4JM is a compact male RJ45 data connector with 4 data contacts, designed for industrial Ethernet and communication connections within compatible ILME heavy-duty connector systems. It provides an industrial RJ45 interface for applications where reliable data transmission needs to be incorporated into machinery, automation equipment and control systems.
The CX4JM is designed for Cat. 5 Ethernet applications and uses four data contacts with IDC termination for 0.22 mm² (AWG 24/7) stranded conductors. Its shielded construction incorporates nickel-plated brass screening to help protect data transmission against electromagnetic interference commonly encountered around motors, drives and industrial switching equipment.
Rated at 2 A and 50 V, with an operating temperature range from -40 °C to +120 °C, the CX4JM is engineered for industrial environments where conventional office-style networking components may not provide the required mechanical and environmental robustness. The connector is suitable for installation with compatible ILME RJ45 adapters and heavy-duty enclosures.
Key Advantages
- Industrial male RJ45 connector with 4 data contacts.
- Designed for Cat. 5 Ethernet data communication.
- Compact format for integration into compatible ILME industrial connector assemblies.
- IDC termination designed for 0.22 mm² (AWG 24/7) stranded data conductors.
- Nickel-plated brass screening helps protect data signals against electromagnetic interference.
- 2 A, 50 V electrical rating for the data contacts.
- Wide -40 °C to +120 °C operating temperature range.
- Suitable for industrial machinery, automation and communication applications.
Key Features
- ILME industrial data connector.
- RJ45 male plug.
- 4 data contacts.
- Cat. 5 Ethernet application.
- IDC conductor termination.
- Designed for 0.22 mm² conductors.
- Suitable for AWG 24/7 stranded wire.
- 2 A rated current.
- 50 V rated voltage.
- Nickel-plated brass screening.
- Maximum complete cable diameter of 7 mm.
- Compact dimensions of approximately 20 × 11.7 mm.
- Wide industrial operating temperature range.
Industrial RJ45 Connectivity for Machine Communications
The ILME CX4JM provides a compact RJ45 interface for transmitting Ethernet data through industrial connector assemblies. Its four data contacts and Cat. 5 Ethernet design make it suitable for communication links where four-wire Ethernet connectivity is required, while IDC termination provides a practical method of connecting the individual data conductors.
Industrial environments can expose communication wiring to vibration, temperature variations and electromagnetic interference from motors, variable-speed drives and switching equipment. The CX4JM combines an RJ45 interface with nickel-plated brass screening and compatibility with ILME industrial adapters and enclosures, helping integrate network connectivity into robust machine interfaces.
Typical Applications
- Industrial Ethernet communication.
- PLC and automation networks.
- Industrial machinery and production equipment.
- Robotics and automated manufacturing systems.
- Machine-to-machine data connections.
- Packaging and processing machinery.
- Control and monitoring systems.
- OEM equipment requiring industrial RJ45 connectivity.
