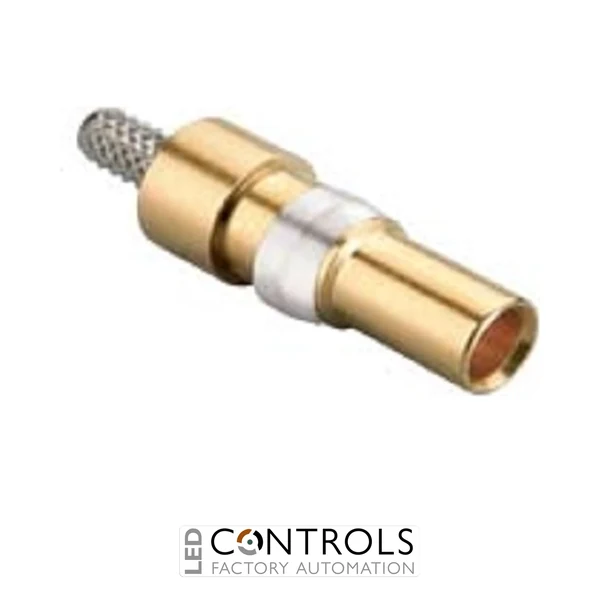

Why Choose the ILME CX50RF Female 50 Ohm Coaxial Crimp Contact?
The ILME CX50RF is a precision female 50 Ω coaxial crimp contact designed for high-frequency signal transmission within the ILME MIXO modular connector system. Manufactured for use with compatible ILME CX 04 R coaxial modules, it enables coaxial communication and signal circuits to be incorporated into robust heavy-duty industrial connector assemblies.
Designed in accordance with the DIN 41626 coaxial contact format, the CX50RF supports frequencies from DC to 6 GHz. Its high-frequency characteristics include return loss of at least 21 dB from DC to 2 GHz and at least 19 dB from 2 to 6 GHz, helping maintain dependable signal integrity in industrial communication, measurement and control applications.
The CX50RF is a gold-finished female contact with crimp termination and is designed for 50 Ω RG 316/U coaxial cable with a nominal external diameter of 2.49 ±0.1 mm. When installed in the appropriate ILME CX 04 RF modular insert, it provides a compact solution for integrating multiple coaxial channels alongside other MIXO power, control, data and pneumatic connections.
Key Advantages
- Precision female 50 Ω coaxial contact for ILME MIXO connector systems.
- Supports high-frequency transmission from DC to 6 GHz.
- Designed for RG 316/U 50 Ω coaxial cable.
- Gold-finished contact surfaces support reliable electrical and RF performance.
- Crimp termination provides a secure mechanical connection for industrial applications.
- Low contact resistance helps minimise signal losses through the connector interface.
- Designed for installation in the ILME CX 04 RF modular insert.
- Enables coaxial signals to be combined with power, control, data and other services in a MIXO assembly.
Key Features
- ILME MIXO coaxial contact range.
- Female coaxial contact.
- 50 Ω characteristic impedance.
- Crimp connection.
- Designed for RG 316/U coaxial cable.
- Suitable cable external diameter: 2.49 ±0.1 mm.
- Frequency range from DC to 6 GHz.
- Return loss ≥21 dB from DC to 2 GHz.
- Return loss ≥19 dB from 2 to 6 GHz.
- RF leakage ≥80 dB up to 0.5 GHz.
- RF leakage ≥65 dB up to 1.5 GHz.
- Compatible with ILME CX 04 RF coaxial modular inserts.
- Recommended crimping tool: ILME COPZ.
High-Frequency 50 Ohm Connectivity for Industrial Systems
The ILME CX50RF enables 50 Ω coaxial signals to be routed through an industrial MIXO connector without requiring a separate external coaxial connection. The CX 04 R modular system accommodates up to four coaxial contacts, allowing multiple RF or high-frequency signal channels to be incorporated into a configurable heavy-duty connector assembly.
For correct installation, ILME recommends the COPZ crimping tool for CX 50 RF/RM and CX 75 RF/RM coaxial contacts. The centre conductor is crimped separately before the cable shield is positioned around the rear contact body and secured with the outer brass sleeve, creating a mechanically robust coaxial termination while maintaining the required shielding arrangement.
Typical Applications
- Industrial RF and coaxial signal transmission.
- Industrial measurement and instrumentation systems.
- Machine vision and imaging equipment.
- Test and measurement machinery.
- Automation and process-control equipment.
- High-frequency sensor and communication circuits.
- OEM machinery requiring integrated coaxial connectivity.
- ILME MIXO modular heavy-duty connector assemblies.
