Why Choose the ILME CX75RF Female 75 Ohm Coaxial Crimp Contact?

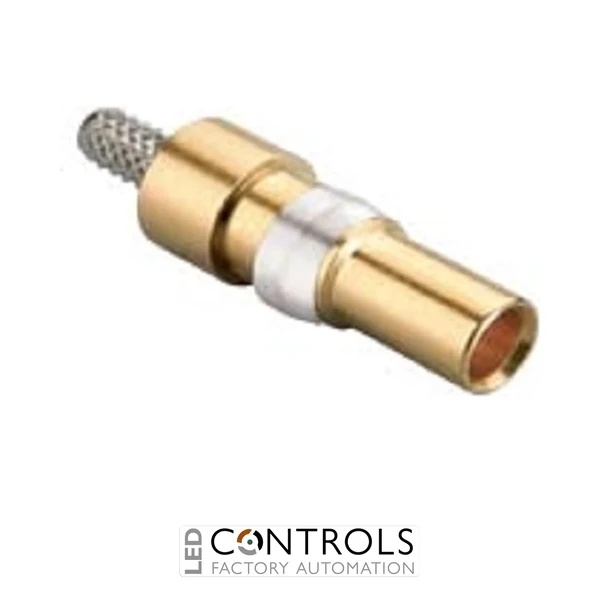

The ILME CX75RF is a precision female 75 Ω coaxial crimp contact designed for transmitting coaxial signals through compatible ILME MIXO modular connector assemblies. It provides a compact solution for incorporating video, measurement and other 75 Ω signal circuits into robust industrial heavy-duty connectors alongside power, control, data and pneumatic services.
Designed in accordance with the DIN 41626 coaxial contact format, the CX75RF uses crimp termination to provide a secure electrical and mechanical connection to compatible 75 Ω coaxial cable. Its coaxial construction maintains the separation between the centre conductor and outer shield required for reliable signal transmission in industrial equipment.
The CX75RF is the female version of ILME's 75 Ω removable coaxial contact and is designed for installation in the compatible ILME CX 04 RF female modular insert. This modular approach enables several coaxial channels to be incorporated into a MIXO connector while retaining the flexibility to combine them with other connection technologies in the same industrial interface.
Key Advantages
- Purpose-designed female 75 Ω coaxial contact for ILME MIXO connectors.
- Crimp termination provides a secure and repeatable coaxial cable connection.
- Designed for reliable transmission of 75 Ω coaxial signals.
- Removable contact construction simplifies connector assembly and servicing.
- Compatible with the ILME CX 04 RF female coaxial modular insert.
- Supports integration of coaxial circuits into robust industrial connector assemblies.
- Allows coaxial connections to be combined with MIXO power, signal, data and pneumatic modules.
- Suitable for industrial video, instrumentation, measurement and communication applications.
Key Features
- ILME MIXO coaxial contact range.
- Female coaxial contact.
- 75 Ω characteristic impedance.
- Crimp connection technology.
- Removable contact design.
- Designed for compatible 75 Ω coaxial cable.
- Compatible with the ILME CX 04 RF modular insert.
- DIN 41626 coaxial contact format.
- Designed for industrial signal transmission.
- Suitable for configurable MIXO heavy-duty connector assemblies.
- Compatible with dedicated ILME coaxial contact installation tooling.
75 Ohm Coaxial Connectivity in the MIXO Modular System
A 75 Ω coaxial connection is commonly used where controlled-impedance transmission is required for video, instrumentation and other signal circuits. The CX75RF allows these circuits to pass through an industrial modular connector while retaining the coaxial arrangement of a centre signal conductor surrounded by an outer shielding connection.
Within the ILME MIXO system, compatible coaxial contacts can be combined with other modular inserts to create a single machine interface carrying multiple services. The CX75RF is installed in the female CX 04 RF insert and mates with the corresponding male coaxial contact, providing a serviceable and configurable alternative to using separate standalone coaxial connectors.
Typical Applications
- Industrial video and camera signal connections.
- 75 Ω coaxial communication circuits.
- Industrial instrumentation and measurement equipment.
- Machine vision and monitoring systems.
- Broadcast and video signal integration in industrial equipment.
- Test and measurement machinery.
- OEM machinery requiring removable coaxial connections.
- ILME MIXO modular heavy-duty connector assemblies.
