Why Choose the ILME CX019VM 9-Pole Male D-Sub Modular Insert?

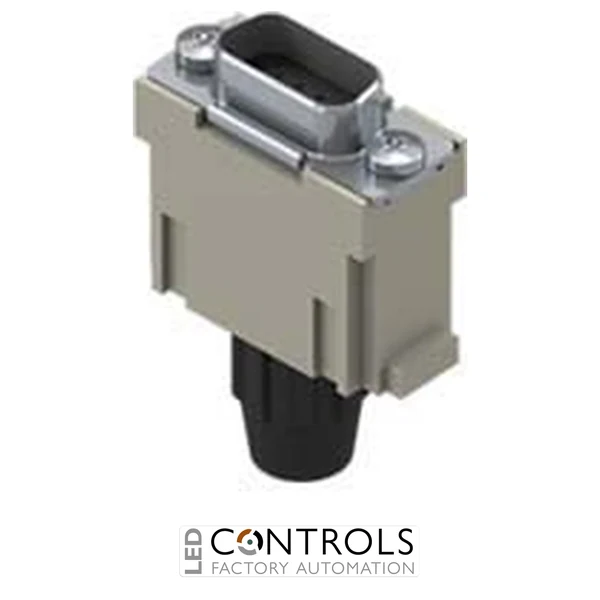

The ILME CX019VM is a compact 9-pole male D-Sub modular insert designed for reliable data and signal connections within heavy-duty industrial connector systems. Part of the ILME MIXO DATA series, this module combines the familiar D-Sub interface with the flexibility and protection offered by the modular MIXO connector platform.
Designed for crimp and shielded connections, the CX019VM has a rated current of 5 A and rated voltage of 50 V. Its nine male contacts are arranged in two rows, providing a compact connection interface suitable for data transmission, control signals and industrial communication applications.
The insert features a durable polycarbonate body with a grey RAL 7032 finish and operates across a temperature range of -40 °C to +70 °C. When installed in a suitable ILME enclosure, the modular connector system can provide a high degree of environmental protection for demanding machinery and automation installations.
Key Advantages
- Compact 9-pole male D-Sub modular insert for industrial data and signal connections.
- 5 A current rating for each compatible connection.
- 50 V rated voltage for low-voltage data and control applications.
- Crimp and shielded connection supports dependable industrial signal transmission.
- Integrates into the flexible ILME MIXO modular connector system.
- Wide -40 °C to +70 °C operating temperature range.
Key Features
- ILME MIXO DATA series.
- 9-pole male D-Sub interface.
- 5 A rated current.
- 50 V rated voltage.
- Two-row contact arrangement.
- Crimp and shielded connection technology.
- Durable polycarbonate body.
- RAL 7032 grey finish.
- Insulation resistance greater than 10 GΩ.
- Straight connector orientation.
Reliable Data Connectivity for Industrial Machinery
The MIXO modular connector system enables power, signal, data and other connection technologies to be combined within a common heavy-duty connector assembly. The CX019VM provides a dedicated D-Sub interface within this modular architecture, helping machine builders create compact and serviceable connection solutions for industrial equipment.
Its shielded crimp connection is particularly useful where dependable signal integrity is required in electrically demanding environments. When combined with compatible MIXO frames, housings and connector components, the CX019VM provides a robust detachable interface for industrial data and control wiring.
Typical Applications
- Industrial data and signal transmission.
- Factory automation and control systems.
- Machine building and production equipment.
- PLC and industrial controller connections.
- Robotics and automated machinery.
- Heavy-duty modular connector assemblies.
