Why Choose the ILME CX01BF Female Shielded Coaxial Insert?

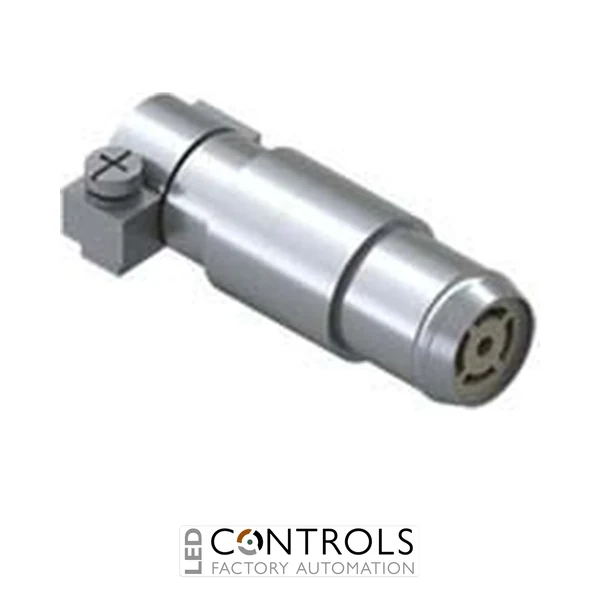

The ILME CX01BF is a compact female shielded coaxial modular insert designed for reliable data and signal transmission within heavy-duty industrial connector assemblies. Part of the ILME MIXO BUS series, it provides one female contact seat together with shielding for applications where dependable signal integrity and electromagnetic protection are required.
The CX01BF is a 1-pole coaxial insert rated at 10 A and 50 V. Its shielded construction makes it particularly suitable for BUS, communication and control connections in industrial machinery, automation systems and electrical equipment where electrical interference can affect signal quality.
Designed for integration into the flexible ILME MIXO modular system, the CX01BF features a durable polycarbonate body and supports an operating temperature range of -40 °C to +85 °C. It provides IP20 protection without an enclosure and can achieve higher environmental protection levels when correctly installed within a suitable ILME enclosure.
Key Advantages
- Compact female shielded BUS coaxial insert for industrial signal connections.
- 1 pole plus shield configuration for coaxial connectivity.
- 10 A current rating and 50 V rated voltage.
- Shielding helps support reliable signal transmission in electrically demanding environments.
- Integrates with the flexible ILME MIXO modular connector system.
- Wide -40 °C to +85 °C operating temperature range.
Key Features
- ILME MIXO BUS series.
- Female modular insert.
- 1-pole shielded coaxial connection.
- 10 A rated current.
- 50 V rated voltage.
- 0.8 kV rated impulse withstand voltage.
- Pollution degree 3.
- Insulation resistance of ≥10 GΩ.
- Contact resistance of ≤3 mΩ.
- Mechanical life of at least 500 mating cycles.
Reliable Shielded Connectivity for Industrial Networks
Industrial communication and control systems can be exposed to electromagnetic interference generated by motors, drives, switching equipment and other electrical devices. The shielded coaxial design of the ILME CX01BF helps maintain dependable signal transmission while providing a compact connection within a modular heavy-duty connector assembly.
The MIXO system allows different connection technologies to be combined within a common connector housing. This enables machine builders and automation engineers to integrate power, control, signal and data connections into a single robust detachable interface while selecting modules appropriate to each circuit.
Typical Applications
- Industrial BUS and communication connections.
- Factory automation and control systems.
- Industrial machinery and production equipment.
- Shielded signal transmission circuits.
- Control cabinets and electrical panels.
- Heavy-duty modular connector assemblies.
