Why Choose the Ilme CX01BM Male Insert?

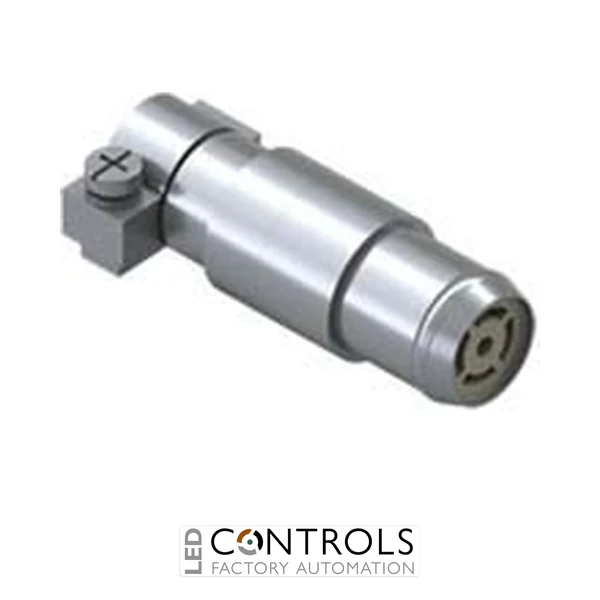

The Ilme CX01BM is a specialised male connector insert with one contact seat and shielding, designed for use within compatible Ilme modular industrial connector assemblies. Its single-position format makes it suitable for applications where a dedicated connection needs to be incorporated alongside other power, signal, data or auxiliary modules.
Designed as part of a modular connector system, the CX01BM provides a male connection and a single contact seat while incorporating shielding functionality. This enables machinery designers and panel builders to configure connector assemblies around the specific electrical and EMC requirements of the application rather than relying on a fixed multipole arrangement.
The CX01BM is particularly suited to industrial installations where reliable connectivity and effective shield continuity are important. Its modular format allows it to be combined with compatible Ilme frames, contacts and connector components to create a compact, serviceable and application-specific industrial interface.
Key Advantages
- Compact male modular connector insert.
- Provides one contact seat for a dedicated electrical connection.
- Integrated shielding functionality supports shielded industrial connections.
- Modular design allows customised connector configurations.
- Suitable for combining with other compatible power, signal and data modules.
- Supports organised and serviceable industrial wiring.
- Designed for compatible Ilme modular connector assemblies.
Key Features
- Ilme CX01BM male insert.
- Manufacturer designation CX 01 BM.
- Male connection.
- 1 contact seat.
- Shielded connector insert design.
- Modular industrial connector component.
- Designed for use with compatible separate contact components.
- Suitable for shielded electrical and signal connections.
- Compatible with appropriate Ilme modular frames and enclosures.
Modular industrial connectors allow different connection technologies to be combined within a single heavy-duty connector enclosure. The Ilme CX01BM provides one male contact position with shielding capability, allowing a dedicated shielded circuit to be incorporated into a customised multipole connector assembly.
This modular approach is particularly useful on machinery and automation equipment where power, control, signal and communication connections need to share a common detachable interface. The CX01BM helps provide an organised connection point while supporting the shielding requirements of sensitive electrical circuits.
Typical Applications
- Industrial machinery and factory automation.
- Shielded signal and control connections.
- Electrical control panels and cabinets.
- Servo and motor connection systems.
- Production and packaging machinery.
- Robotics and automated equipment.
- Custom Ilme modular connector assemblies.
