Why Choose the Ilme CX01T MIXO Modular Frame?

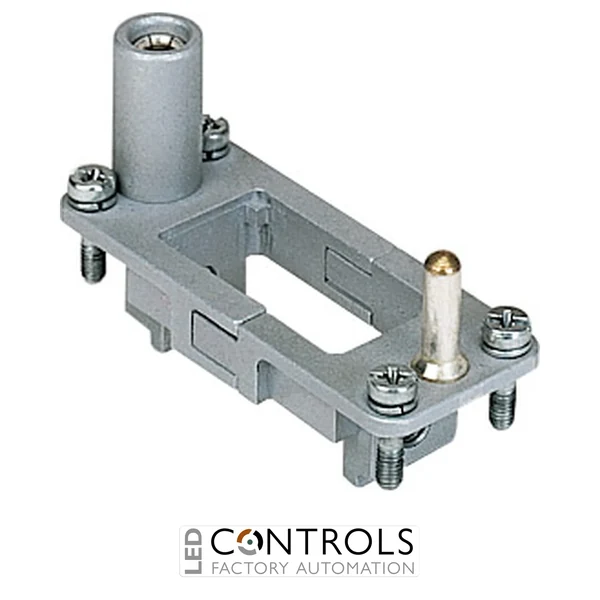

The Ilme CX01T is a compact MIXO modular frame designed to accommodate one Ilme modular insert within compatible size 49.16 CZ enclosures. It provides the mechanical support required to securely position a MIXO module inside a heavy-duty industrial connector assembly.
Designed for one MIXO module, the CX01T allows power, signal, data, fibre-optic or pneumatic connection technologies to be selected according to the application. Its compact format makes it particularly useful where only a single modular function is required while retaining the durability and serviceability of an Ilme heavy-duty connector system.
The CX01T features a robust die-cast zinc-alloy frame together with a protective earth connection. The small PE terminal accepts conductors from 1–2.5 mm² (AWG 18–14), while the frame is designed for a mechanical life of at least 500 mating cycles.
Key Advantages
- Purpose-designed frame for one Ilme MIXO modular insert.
- Compatible with size 49.16 CZ enclosures.
- Robust die-cast zinc-alloy construction.
- Integrated protective earth connection.
- PE terminal accepts 1–2.5 mm² conductors (AWG 18–14).
- Supports flexible MIXO configurations for electrical, data, fibre-optic and pneumatic connections.
- Compact one-module design for space-efficient industrial connector assemblies.
Key Features
- Ilme MIXO modular frame.
- Manufacturer designation CX 01 T.
- 1-module capacity.
- Designed for 1 modular insert.
- Compatible with size 49.16 enclosures.
- Designed for the Ilme CZ enclosure range.
- Die-cast zinc-alloy frame.
- Protective earth terminal incorporated.
- Suitable for 1–2.5 mm² PE conductors.
- Mechanical life of at least 500 mating cycles.
- Compatible with Ilme coding accessories for connector identification.
Ilme MIXO technology allows different connection functions to be combined within heavy-duty industrial connector systems. The CX01T provides the supporting frame for a single MIXO module in a size 49.16 enclosure, allowing the connector to be configured around the precise requirements of the machinery or electrical installation.
The zinc-alloy construction provides durable mechanical support for the installed module, while the integrated protective earth terminal supports safe equipment bonding. This makes the CX01T a practical foundation for compact modular connector assemblies used throughout industrial automation, machinery and control applications.
Typical Applications
- Ilme MIXO modular connector assemblies.
- Industrial machinery and factory automation.
- Electrical control panels and cabinets.
- Power, signal and data connector configurations.
- Robotics and automated production equipment.
- Production and packaging machinery.
- OEM machinery requiring compact modular connectivity.
