Why Choose the ILME CX01YM Male MIXO Modular Insert?

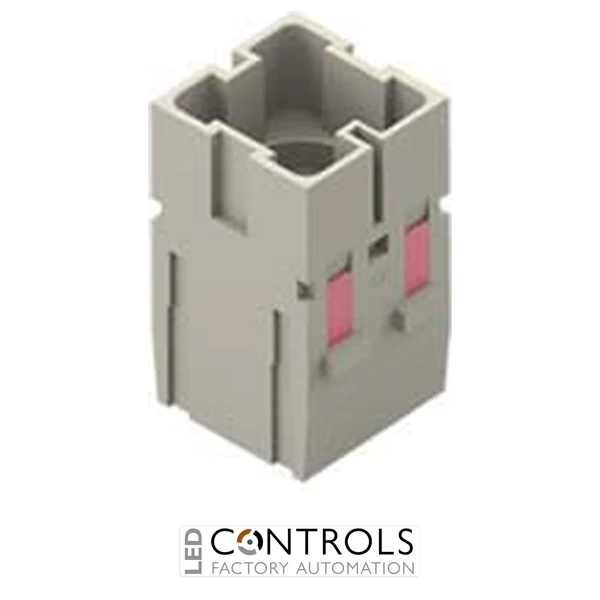

The ILME CX01YM is a high-current male MIXO modular insert designed for reliable power connections in heavy-duty industrial connector assemblies. Part of the versatile ILME MIXO modular connector series, it provides a single high-current pole with crimp termination for machinery, automation, power distribution and industrial equipment.
The CX01YM combines a compact modular format with a substantial 200 A current rating and 1000 V rated voltage. Its modular construction allows power connections to be combined with other compatible MIXO modules for signal, data, pneumatic and control circuits within a single heavy-duty connector enclosure.
Featuring 1 male pole and occupying 2 modules within a compatible MIXO frame, the CX01YM uses separately ordered silver-plated crimp contacts for conductor sizes up to 70 mm². Its robust polycarbonate insulating body and wide operating temperature range make it suitable for demanding industrial environments where dependable high-current connectivity is required.
Key Advantages
- High-current 200 A modular insert for demanding industrial power connections.
- 1000 V rated voltage suitable for heavy-duty electrical systems.
- Single-pole male configuration with secure crimp termination.
- Supports compatible conductors up to 70 mm² with the appropriate crimp contact.
- Modular MIXO architecture enables power, signal, data and control connections to be combined.
- Compact 2-module format for integration into compatible ILME MIXO frames.
Key Features
- ILME MIXO modular connector series.
- 1-pole male modular insert.
- 200 A rated current.
- 1000 V rated voltage.
- 8 kV rated impulse withstand voltage.
- Reliable crimp connection technology.
- 2-module MIXO frame size.
- Compatible with separately ordered silver-plated CYMA crimp contacts.
- Polycarbonate insulating body with UL 94 V-0 flammability rating.
Reliable High-Current Connections for Industrial Equipment
High-current modular connectors allow industrial equipment to carry substantial electrical loads while retaining the flexibility of a configurable connector system. The ILME CX01YM provides a robust single-pole power connection that can be installed alongside other MIXO modules to create application-specific connector assemblies.
The crimp termination system provides a secure electrical and mechanical connection for high-current conductors, while the modular design simplifies equipment installation, replacement and maintenance. This makes the CX01YM particularly suitable for machine builders, automation engineers and industrial panel builders requiring dependable detachable power connections.
Typical Applications
- Industrial machinery and machine building.
- High-current power connections.
- Motor and drive connection systems.
- Automation and production equipment.
- Power distribution systems.
- Robotics and material handling equipment.
