Why Choose the ILME CX01YPEF Female MIXO 200 A PE Modular Insert?

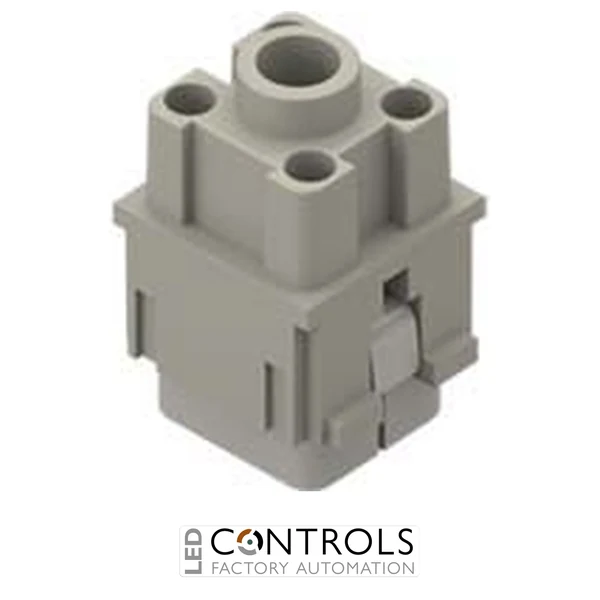

The ILME CX01YPEF is a high-current female MIXO modular protective earth insert designed to provide a dedicated PE connection within heavy-duty industrial connector assemblies. Part of the flexible ILME MIXO modular connector series, it provides one PE pole with crimp termination for dependable protective earth connections in machinery, automation and industrial power systems.
The CX01YPEF combines a substantial 200 A current rating with a compact 2-module format. Its modular construction allows the protective earth connection to be combined with compatible MIXO power, signal, data and control modules within a single connector enclosure, helping machine builders create application-specific connection systems while maintaining a dedicated earth termination.
Featuring a female configuration and crimp connection technology, the CX01YPEF accepts separately ordered ILME CYFA silver-plated female crimp contacts for conductor sizes from 16 mm² to 70 mm². Its green polycarbonate insulating body clearly identifies its PE function and provides robust performance across demanding industrial operating environments.
Key Advantages
- Dedicated protective earth module rated at 200 A for high-current industrial systems.
- 1 PE pole specifically designed for protective earth termination.
- Female configuration with secure crimp connection technology.
- Supports compatible conductor sizes from 16 mm² to 70 mm².
- Compact 2-module MIXO format for configurable connector assemblies.
- Green insulating body provides clear visual identification of the protective earth module.
Key Features
- ILME MIXO modular connector series.
- 1 PE pole female modular insert.
- 200 A rated current.
- Reliable crimp connection system.
- Occupies 2 modules within a compatible MIXO frame.
- Accepts separately ordered silver-plated female crimp contacts.
- Compatible with conductors from 16 mm² to 70 mm² using the appropriate contact.
- Polycarbonate insulating body with UL 94 V-0 flammability rating.
- Wide -40 °C to +125 °C operating temperature range.
Reliable Protective Earth Connections for High-Current Equipment
Protective earth connections provide an essential low-resistance path for fault currents and help maintain safe equipotential bonding between conductive parts of industrial equipment. The ILME CX01YPEF provides a dedicated high-current PE connection within the configurable MIXO modular connector platform.
Its 200 A capability, crimp termination and support for conductors up to 70 mm² make it particularly suitable for demanding industrial installations. When installed in a compatible MIXO frame and enclosure, the module can be combined with other power, signal and communication modules to create a compact, serviceable heavy-duty connection system.
Typical Applications
- Industrial machinery and machine building.
- High-current protective earth connections.
- Motor and drive connection systems.
- Automation and production equipment.
- Industrial power distribution systems.
- Robotics and material handling machinery.
