Why Choose the Ilme CX024AM 2-Pole MIXO Male Modular Insert?

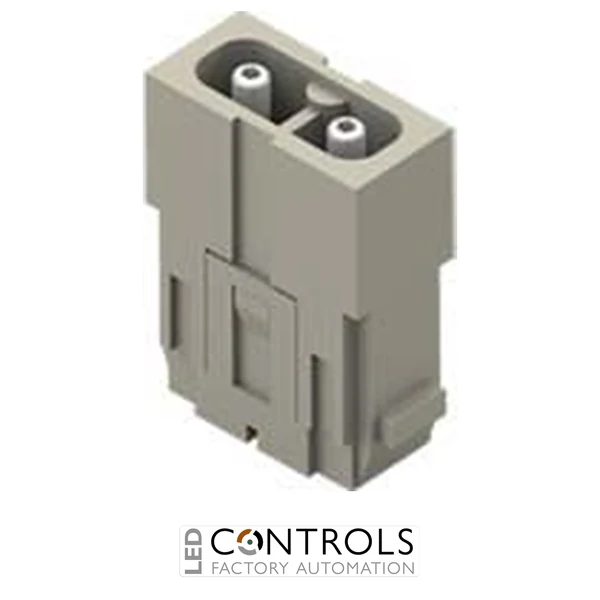

The Ilme CX024AM is a robust 2-pole male modular insert designed for high-current power connections within Ilme MIXO multipole connector systems. Part of the Ilme MIXO series, it uses screw terminal connections and occupies a single module, making it a compact solution for combining power circuits with other modular signal, data or pneumatic connections.
Designed for industrial machinery, automation and control applications, the CX024AM supports conductor sizes from 2.5 mm² to 8 mm² and is rated for up to 40 A at 1000 V. Its turned silver-plated contacts provide low contact resistance and dependable electrical performance in demanding industrial environments.
The insert is manufactured from durable polycarbonate with a UL 94 V-0 flammability rating and operates across a wide temperature range of -40 °C to +125 °C. When installed inside a suitable Ilme enclosure, the assembly can achieve protection ratings up to IP65 / IP66 / IP68 / IP69.
Key Advantages
- Compact 2-pole male MIXO modular insert for power connections.
- 40 A current rating for demanding industrial circuits.
- 1000 V rated voltage according to EN 61984.
- Screw terminal connection for secure field wiring.
- Accepts conductors from 2.5 mm² to 8 mm².
- Can achieve IP65 / IP66 / IP68 / IP69 protection when installed in a suitable enclosure.
Key Features
- Ilme MIXO series.
- 2-pole male modular insert.
- 1 module width.
- Screw terminal connection.
- 40 A rated current.
- 1000 V rated voltage.
- 8 kV rated impulse withstand voltage.
- Suitable for 2.5 mm² to 8 mm² conductors.
- Turned silver-plated contacts for reliable electrical performance.
- Polycarbonate housing with UL 94 V-0 flammability rating.
- Wide -40 °C to +125 °C operating temperature range.
Reliable High-Current Power Connectivity for Industrial Systems
MIXO modular inserts allow power, signal, data and other connections to be combined within a single heavy-duty connector assembly. This modular approach helps reduce connector count, simplify machine wiring and create compact interfaces between control cabinets, production equipment and field devices.
The Ilme CX024AM is specifically designed for higher-current power circuits and provides two screw-terminal poles within a single MIXO module. Its 40 A rating, 1000 V capacity and robust industrial construction make it well suited to machinery and automation systems where dependable power transmission is required.
Typical Applications
- Industrial machinery power connections.
- Factory automation and production equipment.
- Motor and actuator power circuits.
- Control panels and machine interfaces.
- OEM equipment and machine building.
- Ilme MIXO modular connector assemblies.
