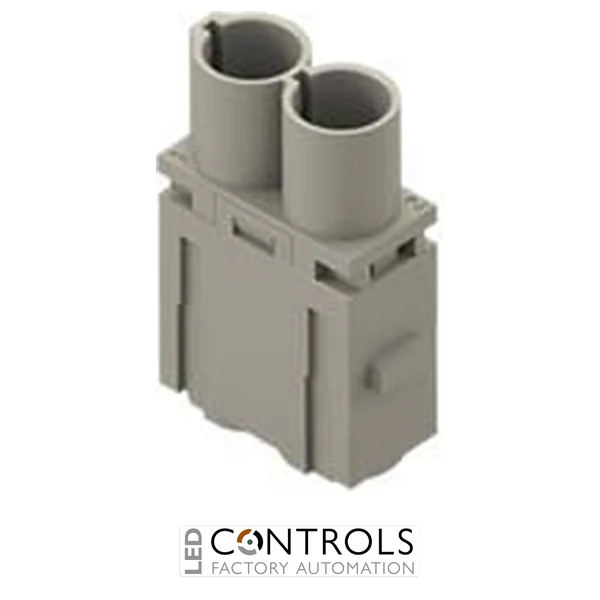

Why Choose the ILME CX027M 2-Pole 70 A Male MIXO Modular Insert?
The ILME CX027M is a high-current 2-pole male modular insert designed for heavy-duty power connections within the ILME MIXO modular connector system. Using crimp connection technology and occupying only one MIXO module, it provides a compact and dependable solution for carrying high electrical currents through industrial machinery, control systems and power distribution equipment.
Rated at 70 A and 1000 V with an 8 kV rated impulse withstand voltage at pollution degree 3, the CX027M is engineered for demanding industrial power applications. An alternative EN 61984 characteristic of 70 A, 1600 V, 12 kV, pollution degree 2 further demonstrates the module's suitability for high-voltage connector configurations when installed under the applicable conditions.
The CX027M is supplied without crimp contacts, allowing the appropriate CX7 series male contacts to be selected for the required conductor size. Compatible silver-plated contacts are available for conductor cross-sections including 6, 10, 16 and 25 mm², providing flexibility when configuring high-current industrial wiring.
Key Advantages
- High-current 2-pole male MIXO modular insert for industrial power connections.
- 70 A current rating supports demanding machinery and power applications.
- 1000 V rated voltage with an 8 kV impulse withstand rating.
- Compact design occupies only one MIXO module slot.
- Crimp connection technology provides secure, low-resistance conductor termination.
- Compatible with multiple CX7 male crimp contacts for different conductor cross-sections.
Key Features
- ILME MIXO modular system.
- 2-pole male insert.
- 70 A rated current.
- 1000 V rated voltage.
- 8 kV rated impulse withstand voltage.
- Pollution degree 3.
- 600 V rated voltage according to UL/CSA.
- Insulation resistance of ≥10 GΩ.
- Contact resistance of ≤0.5 mΩ.
- Wide -40 °C to +125 °C operating temperature range.
Reliable High-Current Power Connectivity
The ILME MIXO modular system allows power, control, signal, data and other connection technologies to be combined within a common heavy-duty connector assembly. The CX027M provides two high-current circuits within a single module slot, making it particularly useful where installation space is limited but substantial electrical power must be transmitted through a detachable connector.
The CX027M accepts separately ordered CX7 series male silver-plated crimp contacts. Compatible contact options support conductor sizes including 6, 10, 16 and 25 mm², enabling the connection to be configured according to the conductor and application requirements. Crimp termination provides a secure electrical and mechanical connection suitable for demanding industrial installations.
Typical Applications
- Industrial machinery and production equipment.
- High-current power distribution connections.
- Motor and drive power connections.
- Factory automation systems.
- Control cabinets and electrical panels.
- Robotics and automated manufacturing equipment.
- Heavy-duty modular connector assemblies.
