Why Choose the ILME CX02BF Female MIXO BUS Modular Insert?

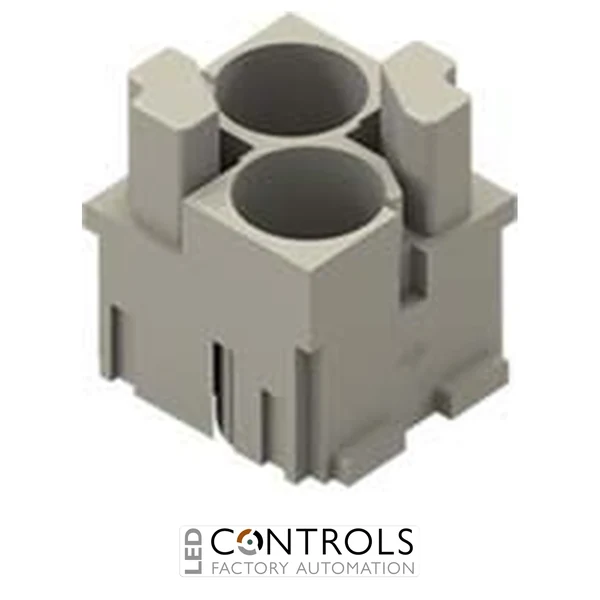

The ILME CX02BF is a female coaxial modular insert designed to accommodate two shielded BUS connectors within the ILME MIXO modular connector system. Part of the ILME MIXO BUS range, this two-module insert provides a compact and flexible platform for integrating shielded industrial data and signal connections into heavy-duty connector assemblies.
The CX02BF provides seats for two shielded connectors, allowing compatible MIXO BUS contact modules to be selected according to the required communication interface. Compatible shielded connector types include coaxial, quad-axial and multi-contact BUS configurations, enabling the modular assembly to be tailored to different industrial communication requirements.
Rated at 50 V with a 0.8 kV rated impulse withstand voltage at pollution degree 3, the CX02BF features a durable polycarbonate body and operates across a wide temperature range of -40 °C to +125 °C. It provides IP20 protection without an enclosure and can achieve higher environmental protection when correctly installed within a suitable ILME housing.
Key Advantages
- Female MIXO BUS modular insert for two shielded connectors.
- Provides two independent connector seats within a compact modular assembly.
- Supports compatible coaxial, quad-axial and multi-contact shielded BUS connectors.
- 50 V rated voltage for industrial signal and communication applications.
- Wide -40 °C to +125 °C operating temperature range.
- Integrates into the flexible ILME MIXO modular connector system.
Key Features
- ILME MIXO BUS adapter series.
- Female modular insert.
- Coaxial connection system.
- Seat for 2 shielded connectors.
- 2-module footprint.
- 50 V rated voltage.
- 0.8 kV rated impulse withstand voltage.
- Pollution degree 3.
- Insulation resistance of ≥10 GΩ.
- UL 94 V-0 flammability rating.
Flexible Shielded BUS Connectivity for Industrial Systems
Industrial communication systems often operate alongside motors, drives, switching equipment and other potential sources of electromagnetic interference. The CX02BF allows two compatible shielded BUS connector modules to be incorporated into a MIXO assembly, providing a flexible solution for protected data and signal connections within industrial machinery and automation systems.
The two connector positions can accept compatible MIXO BUS shielded connector types such as CX01B, CX01BC, CX04B and CX08B variants. This modular approach allows machine builders to select the appropriate signal interface while integrating it alongside other power, control, data or pneumatic modules within a common heavy-duty connector housing.
Typical Applications
- Industrial BUS and communication systems.
- Factory automation and process control equipment.
- Shielded data and signal transmission.
- Industrial machinery and production equipment.
- Robotics and automated manufacturing systems.
- Control cabinets and electrical panels.
- Heavy-duty modular connector assemblies.
