Why Choose the ILME CX02BM Male MIXO Bus Modular Insert?

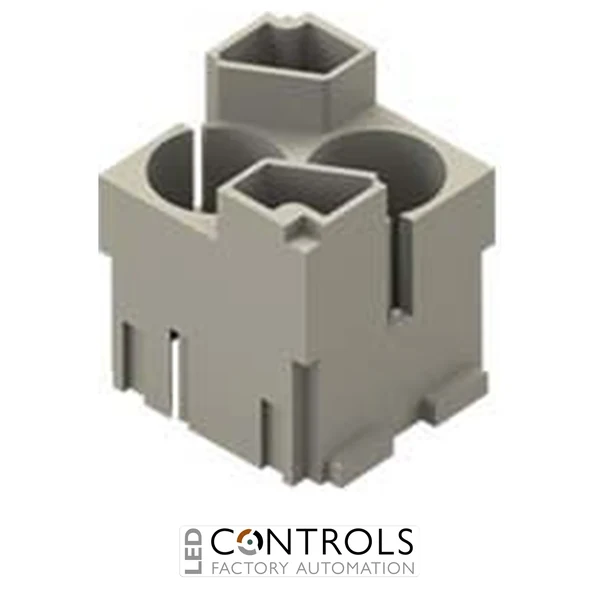

The ILME CX02BM is a robust male modular insert for shielded bus and coaxial connectors, designed for industrial data and signal connections within the ILME MIXO modular connector system. Part of the ILME MIXO Bus adapter range, this two-module insert provides two seats for compatible shielded connectors, allowing data and communication interfaces to be combined with other MIXO modules in a single heavy-duty connector assembly.
Manufactured from durable polycarbonate with a UL 94 V-0 flammability rating, the CX02BM is engineered for reliable use in demanding industrial environments. Its modular construction gives machine builders and automation engineers flexibility when configuring connectors for bus, coaxial and shielded communication systems while maintaining a compact installation footprint.
The CX02BM has a rated voltage of 50 V, a rated impulse withstand voltage of 0.8 kV and pollution degree 3. It provides two seats for shielded connectors and occupies two MIXO modules, making it suitable for machinery, automation, control systems and industrial communication applications requiring dependable shielded signal connections.
Key Advantages
- Purpose-designed male MIXO Bus modular insert for industrial communication connections.
- Provides two seats for compatible shielded bus or coaxial connectors.
- Two-module format enables flexible integration into ILME MIXO modular assemblies.
- 50 V rated voltage for low-voltage signal and communication applications.
- Durable polycarbonate construction with UL 94 V-0 flammability rating.
- Wide -40 °C to +125 °C operating temperature range for demanding environments.
- Compatible with suitable ILME enclosures for high levels of environmental protection.
Key Features
- ILME MIXO Bus adapter series.
- Male modular insert.
- Two-module size.
- Coaxial / shielded bus connector interface.
- Two seats for shielded connectors.
- 50 V rated voltage.
- 0.8 kV rated impulse withstand voltage.
- Pollution degree 3.
- ≥10 GΩ insulation resistance.
- Polycarbonate construction in RAL 7032 grey.
- UL 94 V-0 flammability rating.
Reliable Shielded Connectivity for Industrial Automation
The ILME MIXO modular system allows power, signal, data, pneumatic and communication connections to be combined within a single configurable industrial connector. The CX02BM provides dedicated mounting positions for shielded communication connectors, helping create compact interfaces for machinery and automation equipment where reliable data transmission is essential.
The insert can accommodate compatible ILME MIXO BUS shielded connector combinations, including suitable coaxial and multiaxial connector types. When fitted into an appropriate MIXO frame and ILME enclosure, the modular design provides a robust connection solution suitable for industrial installations exposed to vibration, temperature changes, dust and moisture.
Typical Applications
- Industrial automation and machinery.
- Industrial bus and communication connections.
- Shielded signal and data interfaces.
- Coaxial communication connections.
- Robotics and automated production equipment.
- Control cabinets and machine control systems.
- OEM machinery and modular connector assemblies.
