Why Choose the ILME CX02GM Male MIXO Modular Insert?

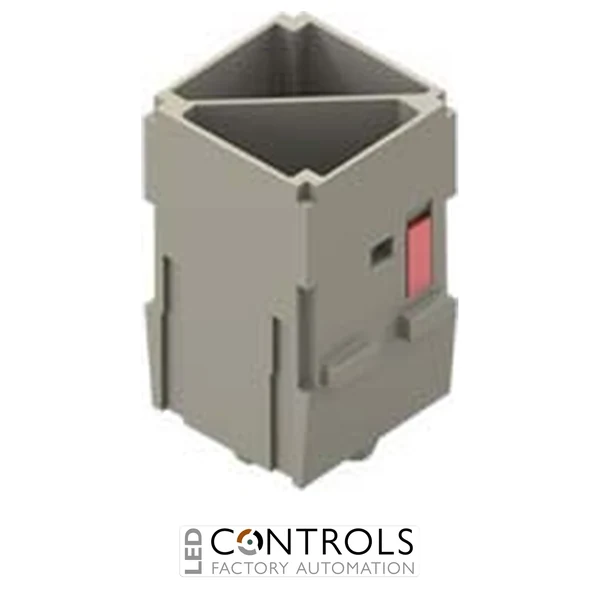

The ILME CX02GM is a high-current male MIXO modular insert designed for reliable detachable power connections in heavy-duty industrial connector assemblies. Part of the versatile ILME MIXO modular connector series, it provides two poles with crimp termination for machinery, automation, power distribution and industrial equipment.
The CX02GM combines a substantial 100 A current rating with a 1000 V rated voltage, making it suitable for demanding industrial power circuits. Its modular construction enables power connections to be combined with compatible MIXO signal, data, control and pneumatic modules within a single heavy-duty connector enclosure.
Featuring 2 male poles in a compact 2-module format, the CX02GM accepts separately ordered ILME CGMA silver-plated male crimp contacts for conductor sizes from 8–10 mm² to 35 mm². Its robust polycarbonate insulating body and wide operating temperature range provide dependable performance in demanding industrial environments.
Key Advantages
- High-current 100 A modular insert for demanding industrial power connections.
- 1000 V rated voltage suitable for heavy-duty electrical systems.
- 2-pole male configuration with reliable crimp termination.
- Supports compatible conductors from 8–10 mm² to 35 mm².
- Compact 2-module MIXO format for configurable connector assemblies.
- Modular architecture allows power circuits to be combined with signal, data and control connections.
Key Features
- ILME MIXO modular connector series.
- 2-pole male modular insert.
- 100 A rated current.
- 1000 V rated voltage.
- 8 kV rated impulse withstand voltage.
- Reliable crimp connection technology.
- Occupies 2 modules within a compatible MIXO frame.
- Compatible with separately ordered CGMA silver-plated male crimp contacts.
- Polycarbonate insulating body with UL 94 V-0 flammability rating.
Reliable High-Current Connections for Industrial Equipment
High-current modular connectors provide a practical way to distribute substantial electrical loads while retaining the flexibility and serviceability of a detachable connector system. The ILME CX02GM provides two robust power poles that can be installed alongside other MIXO modules to create connector assemblies tailored to specific industrial applications.
The crimp termination system provides secure electrical and mechanical connections for conductors up to 35 mm², while the MIXO modular architecture simplifies equipment installation, maintenance and replacement. This makes the CX02GM particularly suitable for machine builders, automation engineers and panel builders requiring dependable high-current connections.
Typical Applications
- Industrial machinery and machine building.
- High-current power connections.
- Motor and drive connection systems.
- Automation and production equipment.
- Power distribution and control systems.
- Robotics and material handling equipment.
