Why Choose the ILME CX02HF Female MIXO High-Voltage Modular Insert?

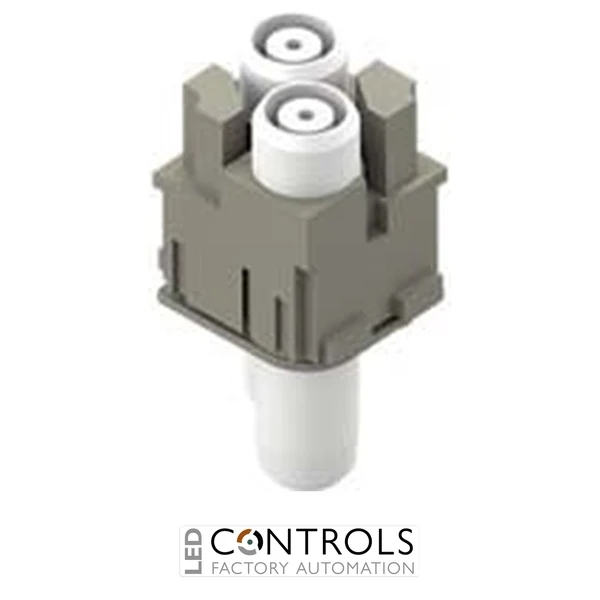

The ILME CX02HF is a high-voltage female MIXO modular insert designed for dependable electrical connections in demanding industrial connector assemblies. Part of the flexible ILME MIXO modular connector series, it provides two poles with crimp termination and is specifically engineered for applications requiring high operating voltages while retaining the flexibility of a modular heavy-duty connector system.
The CX02HF is rated at 16 A with a high-voltage rating of 2900/5000 V and a rated impulse withstand voltage of 15 kV. Its specialised construction and supplied heat-shrink insulating tubes provide additional insulation around the rear of the contacts, making the module suitable for high-voltage industrial equipment and machinery.
Featuring 2 female poles and occupying 2 modules within a compatible MIXO frame, the CX02HF uses separately ordered 16 A female crimp contacts for conductors up to 4 mm². Its robust polycarbonate insulating body, high insulation resistance and wide operating temperature range provide reliable performance in demanding industrial environments.
Key Advantages
- Specialist high-voltage MIXO modular insert for industrial connector assemblies.
- 16 A rated current with a high-voltage rating of 2900/5000 V.
- High 15 kV impulse withstand voltage for demanding electrical applications.
- 2-pole female configuration with secure crimp termination.
- Supplied with heat-shrink insulating tubes for the rear of the contacts.
- Compact 2-module format integrates with compatible ILME MIXO frames and enclosures.
Key Features
- ILME MIXO high-voltage modular connector series.
- 2-pole female modular insert.
- 16 A rated current.
- 2900/5000 V rated voltage.
- 15 kV rated impulse withstand voltage.
- Pollution degree 3.
- Reliable crimp connection technology.
- Supports female crimp contacts for conductors up to 4 mm².
- Occupies 2 modules within a compatible MIXO frame.
- Supplied with heat-shrink insulating tubes for enhanced contact insulation.
- Polycarbonate insulating body with UL 94 V-0 flammability rating.
Reliable High-Voltage Connections for Industrial Equipment
High-voltage modular connectors allow specialised electrical circuits to be incorporated into configurable heavy-duty connector assemblies while maintaining the insulation and electrical separation required by demanding applications. The ILME CX02HF provides two dedicated high-voltage connections within the flexible MIXO modular platform.
Its 2900/5000 V rating, 15 kV impulse withstand capability and supplied heat-shrink insulating tubes make it particularly suitable for equipment where enhanced electrical insulation is required. The modular format also allows the CX02HF to be installed alongside other compatible MIXO modules to create application-specific industrial connection systems.
Typical Applications
- High-voltage industrial machinery.
- Industrial power and electrical equipment.
- Test and measurement systems.
- Special-purpose production machinery.
- Automation and machine-building systems.
- Modular heavy-duty connector assemblies requiring high-voltage circuits.
