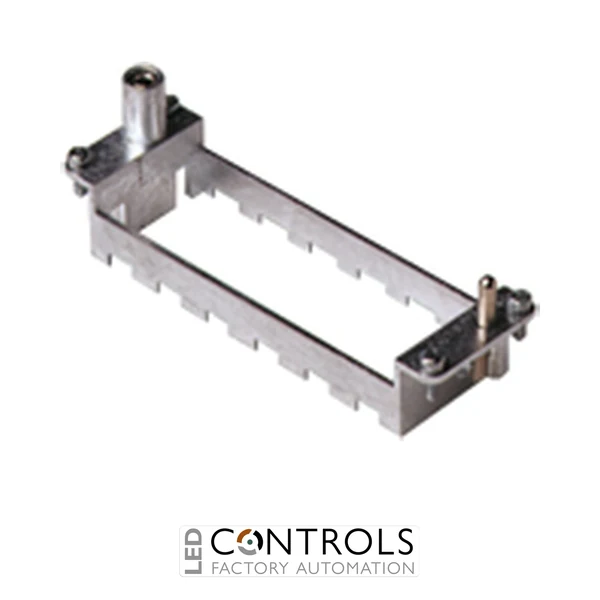

Why Choose the Ilme CX02TM MIXO Modular Frame?
The Ilme CX02TM is a 2-module frame for MIXO modular inserts designed for use with Ilme size 44.27 heavy-duty connector hoods. It provides the mechanical support required to securely retain two compatible MIXO modular units within a configurable industrial connector assembly.
As part of the versatile Ilme MIXO modular connector system, the CX02TM enables different power, signal, data and other compatible connection modules to be combined within a single heavy-duty connector. This modular architecture allows machine builders, panel builders and automation engineers to configure connector interfaces around the precise electrical and communication requirements of their equipment.
The CX02TM is the conventional frame-for-hoods version for size 44.27 assemblies and accommodates two MIXO modules. Used with the complementary modular frame on the mating connector half, it provides accurate alignment and secure retention of the selected modules during connection and disconnection.
Key Advantages
- Designed to accommodate 2 Ilme MIXO modular units.
- Suitable for size 44.27 heavy-duty connector assemblies.
- Frame-for-hoods configuration for the modular connector system.
- Provides secure mechanical positioning and retention of compatible MIXO modules.
- Allows compatible power, signal and data functions to be combined in one connector.
- Modular construction simplifies machinery installation, servicing and connector customisation.
Key Features
- Ilme MIXO modular connector series.
- 2-module frame.
- Designed for size 44.27 connector assemblies.
- Frame-for-hoods configuration.
- Accepts 2 compatible MIXO modular inserts.
- Provides mechanical support and alignment for modular units.
- Compatible with the complementary MIXO frame on the mating connector half.
- Supports configurable combinations of electrical and data connection modules.
- Suitable for heavy-duty industrial connector applications.
Flexible Mounting for MIXO Modular Connectors
The Ilme MIXO system enables different connection technologies to be installed together within a common heavy-duty connector enclosure. The CX02TM provides the supporting frame for two compatible modules on the hood side of a size 44.27 assembly, helping maintain correct positioning and alignment when the connector halves are coupled.
By selecting appropriate MIXO modules, designers can combine power, control, signal, data and other connection functions within one detachable interface. This helps reduce the number of individual connectors required on industrial machinery while providing a flexible system that can be configured around specific equipment requirements.
Typical Applications
- Industrial machinery connector assemblies.
- Factory automation systems.
- Control panels and electrical equipment.
- Production and packaging machinery.
- Robotics and automated handling systems.
- Modular power and control interfaces.
- Industrial signal and data connections.
- OEM machine and equipment building.
