Why Choose the Ilme CX04BF Female MIXO BUS Insert?

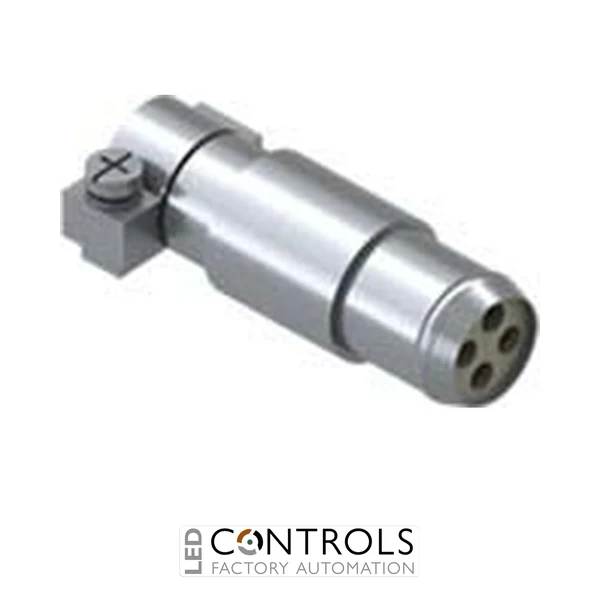

The Ilme CX04BF is a specialised 4-pole female shielded BUS modular insert designed for reliable industrial data transmission within Ilme MIXO multipole connector systems. Part of the Ilme MIXO BUS series, it combines four contact positions with shielding to provide a robust connection for shielded data cables in industrial machinery and automation applications.
Designed for shielded BUS communications, the CX04BF is suitable for STP cables with two pairs and supports terminations compliant with EN 50173-1 Category 5 at 100 MHz. Its four-wire configuration makes it compatible with suitable fieldbus protocols, while the shield connection helps maintain signal integrity in electrically noisy industrial environments.
The CX04BF is rated at 10 A and 50 V, with a 0.8 kV rated impulse withstand voltage and pollution degree 3. Its polycarbonate construction, wide -40 °C to +85 °C operating temperature range and compatibility with separately ordered Ilme CDF 10 A female crimp contacts make it a flexible solution for industrial shielded data connections.
Key Advantages
- Specialised 4-pole female shielded MIXO BUS insert.
- Designed for shielded industrial data transmission.
- Suitable for STP cables with two pairs.
- Supports Category 5 terminations up to 100 MHz.
- Compatible with 4-wire fieldbus protocols.
- Uses separately ordered Ilme CDF 10 A female crimp contacts.
Key Features
- Ilme MIXO BUS series.
- 4-pole female modular insert.
- 4 contact seats plus shield.
- Shielded multi-axial BUS connection.
- 10 A rated current.
- 50 V rated voltage.
- 0.8 kV rated impulse withstand voltage.
- Suitable for 10 A CDF female crimp contacts.
- Supports conductor sizes from 0.14 mm² to 2.5 mm² with the appropriate contact.
- ≤ 3 mΩ contact resistance.
- Polycarbonate construction with UL 94 V-0 flammability rating.
- Wide -40 °C to +85 °C operating temperature range.
Reliable Shielded BUS Connectivity for Industrial Systems
Shielded industrial data connectors help protect communication signals from electromagnetic interference generated by motors, variable frequency drives, switching equipment and other electrical devices. Maintaining the cable shield through the connector interface is particularly important in industrial environments where reliable fieldbus communication is required.
The Ilme CX04BF combines four electrical contact positions with shielding in a compact MIXO BUS insert. Designed for STP cables with two pairs and Category 5 terminations up to 100 MHz, it provides a practical connection solution for compatible four-wire fieldbus systems while allowing data connectivity to be incorporated into configurable Ilme MIXO assemblies.
Typical Applications
- Industrial fieldbus communication systems.
- Factory automation and production machinery.
- Shielded industrial data connections.
- PLC and distributed control systems.
- Control cabinets and machine interfaces.
- Ilme MIXO modular connector assemblies.
