Why Choose the ILME CX04XF 4-Pole 40 A Female MIXO Modular Insert?

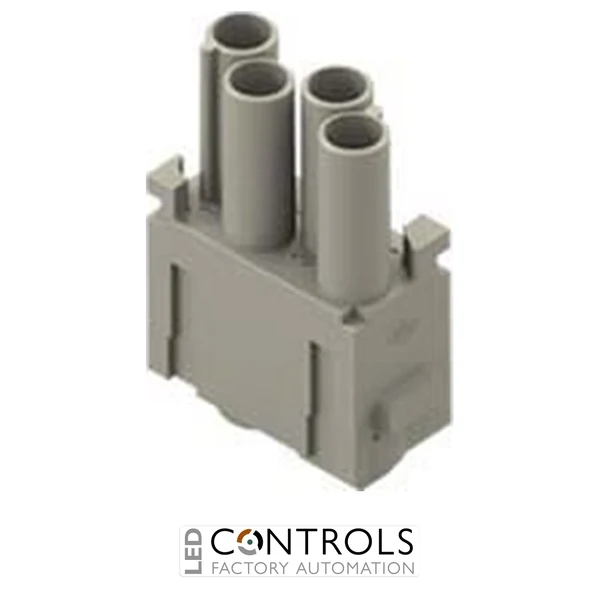

The ILME CX04XF is a compact 4-pole female modular insert designed for high-current power connections within ILME MIXO heavy-duty modular connector assemblies. Featuring crimp termination and occupying only one module position, it provides a reliable and space-efficient connection solution for industrial machinery, automation equipment and electrical power systems.
The CX04XF is rated at 40 A and 830 V, with an 8 kV rated impulse withstand voltage at pollution degree 3. An alternative EN 61984 characteristic of 40 A, 1000 V, 8 kV at pollution degree 2 is also specified, while its UL/CSA rated voltage is 600 V.
Designed for crimp connection, the CX04XF is supplied without contacts so the appropriate female crimp contacts can be selected separately. Compatible 40 A contacts support conductor cross-sections of 1.5, 2.5, 4 and 6 mm², giving machine builders flexibility when configuring high-current modular connections.
Key Advantages
- Compact 4-pole female MIXO modular insert for industrial power connections.
- 40 A current rating suitable for demanding electrical loads.
- 830 V rated voltage for industrial power applications.
- Occupies only one MIXO module slot for space-efficient assemblies.
- Crimp termination provides secure and dependable conductor connections.
- Suitable for both standard and HNM (High Number of Matings) configurations with the appropriate contacts, frames and enclosures.
Key Features
- ILME MIXO series.
- 4-pole female modular insert.
- 40 A rated current.
- 830 V rated voltage.
- 8 kV rated impulse withstand voltage.
- Pollution degree 3.
- Crimp connection technology.
- 1-module width.
- Insulation resistance of ≥10 GΩ.
- Wide -40 °C to +125 °C operating temperature range.
Compact High-Current Connectivity for Industrial Equipment
The ILME MIXO modular system allows power, control, signal, data and specialist connections to be combined within a common heavy-duty connector assembly. The CX04XF provides four high-current female connection positions in only one module, helping designers create compact multi-function interfaces while maintaining dependable electrical performance.
The insert is supplied without contacts and accepts separately ordered 40 A silver-plated female crimp contacts for conductors from 1.5 mm² to 6 mm². It can be configured for standard applications or combined with appropriate HNM contacts, frames and enclosures where a high number of mating cycles is required.
Typical Applications
- Industrial machinery and production equipment.
- Motor and drive power connections.
- Factory automation systems.
- Robotics and automated manufacturing equipment.
- Electrical control panels and cabinets.
- Industrial power distribution interfaces.
- Heavy-duty MIXO modular connector assemblies.
