Why Choose the ILME CX04XM Male MIXO Modular Insert?

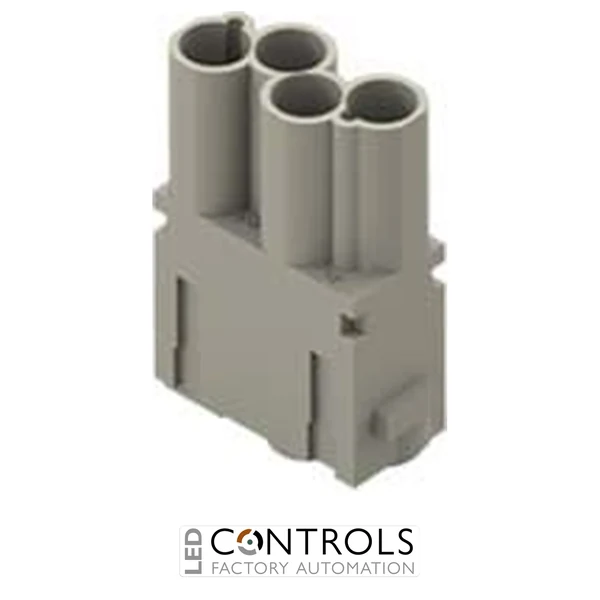

The ILME CX04XM is a high-current male MIXO modular insert designed for reliable power connections within heavy-duty industrial connector assemblies. Part of the flexible ILME MIXO modular connector series, it provides four poles with crimp termination and combines substantial electrical capacity with a compact single-module format.
The CX04XM is rated at 40 A and 830 V under standard pollution degree 3 conditions, with a rated impulse withstand voltage of 8 kV. Its modular construction enables power circuits to be combined with compatible MIXO signal, data, control and pneumatic modules within a single industrial connector enclosure.
Featuring 4 male poles in a compact 1-module format, the CX04XM uses separately ordered silver-plated ILME CXMA crimp contacts for conductor sizes up to 6 mm². This combination of high current capacity, modular flexibility and secure crimp termination makes it suitable for machine building, automation and industrial power applications.
Key Advantages
- High-current 40 A modular insert for industrial power connections.
- 4-pole male configuration provides multiple circuits within a compact module.
- 830 V rated voltage under standard pollution degree 3 conditions.
- Compact 1-module MIXO format maximises connector configuration flexibility.
- Secure crimp connection supports conductors up to 6 mm².
- Compatible with the wider ILME MIXO system for combining power, signal, data and control connections.
Key Features
- ILME MIXO modular connector series.
- 4-pole male modular insert.
- 40 A rated current.
- 830 V rated voltage at pollution degree 3.
- 1000 V rating at pollution degree 2.
- 8 kV rated impulse withstand voltage.
- Reliable crimp connection technology.
- Occupies only 1 module within a compatible MIXO frame.
- Compatible with separately ordered silver-plated ILME CXMA crimp contacts.
- Supports conductor sizes from 1.5 mm² to 6 mm².
Reliable High-Current Connections for Industrial Equipment
Modular power connectors provide machine builders with a flexible way to route substantial electrical loads alongside signal, data and control circuits while retaining a detachable and serviceable connection. The ILME CX04XM provides four high-current poles within only one MIXO module, helping maximise the available space inside compatible heavy-duty connector enclosures.
The crimp termination system provides secure electrical and mechanical conductor connections, while separately selected contacts allow conductor size to be matched to the application. Combined with the MIXO platform's configurable architecture, the CX04XM is well suited to industrial systems requiring compact, robust and adaptable power connectivity.
Typical Applications
- Industrial machinery and machine building.
- Motor and drive connection systems.
- Industrial power distribution circuits.
- Automation and production equipment.
- Robotics and material handling systems.
- Configurable heavy-duty power and control connector assemblies.
