Why Choose the ILME CX06CF Female 6-Pole Crimp Modular Insert?

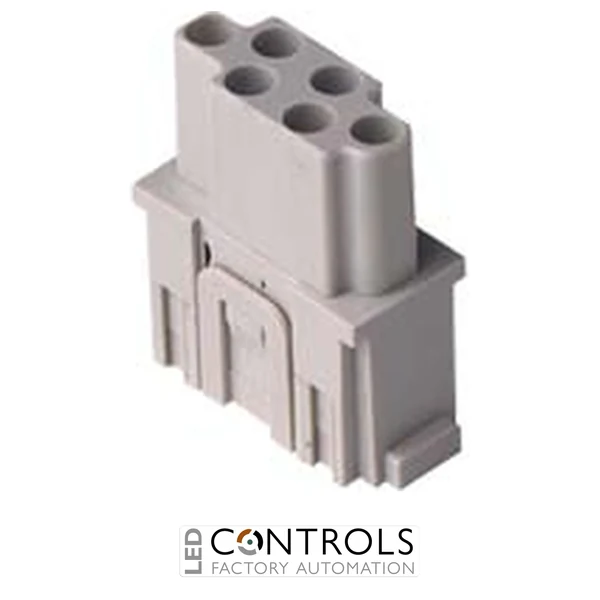

The ILME CX06CF is a compact and reliable 6-pole female modular insert with crimp connections, designed for industrial power and control connections within the ILME MIXO modular connector system. As part of the versatile ILME MIXO series, it provides a rated current of 16 A and rated voltage of 500 V while occupying only one module in a compatible MIXO frame.
The CX06CF uses removable female crimp contacts, allowing the appropriate contact to be selected for the conductor size and application. Compatible 16 A contacts are available for conductor cross-sections from 0.14–4 mm², providing flexibility for machine builders, panel builders and automation engineers while maintaining a secure and dependable electrical connection.
With a rated impulse withstand voltage of 6 kV, pollution degree 3 and a wide -40 °C to +125 °C operating temperature range, the CX06CF is engineered for demanding industrial environments. Its single-module MIXO format enables six electrical connections to be combined with other compatible power, signal, data or pneumatic modules in a customised heavy-duty connector assembly.
Key Advantages
- Compact female 6-pole modular insert for ILME MIXO connector systems.
- 16 A rated current for dependable industrial electrical connections.
- 500 V rated voltage with a 6 kV rated impulse withstand voltage.
- Crimp termination provides secure, reliable and serviceable conductor connections.
- Compatible contacts support conductor sizes from 0.14–4 mm².
- Single-module footprint maximises available space within MIXO connector assemblies.
- Suitable for both standard and HNM high-number-of-matings applications.
- Wide -40 °C to +125 °C operating temperature range for demanding machinery environments.
Key Features
- ILME MIXO modular connector series.
- Female 6-pole modular insert.
- Crimp connection technology.
- Single-module size.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Compatible with separately ordered 16 A female crimp contacts.
- Contact options for 0.14–4 mm² conductors.
- ≤1 mΩ contact resistance.
- ≥10 GΩ insulation resistance.
- Polycarbonate construction with UL 94 V-0 flammability rating.
Reliable Crimp Connectivity for Industrial Machinery
Crimp connections provide a mechanically secure and electrically reliable termination by forming the contact around the conductor with a suitable crimping tool. The ILME CX06CF uses removable female contacts, allowing contacts to be selected according to conductor size and replaced independently of the modular insert when required.
The MIXO modular system allows power, control, signal, data and other connection technologies to be combined within a configurable heavy-duty connector. Because the CX06CF occupies only one module, it provides six 16 A electrical contact positions while retaining valuable frame space for other compatible MIXO modules.
Typical Applications
- Industrial machinery and automation systems.
- Control panels and electrical cabinets.
- Robotics and automated production equipment.
- Packaging and processing machinery.
- Machine tools and manufacturing equipment.
- Material handling and conveyor systems.
- OEM machinery and modular connector assemblies.
