Why Choose the ILME CX08CF 8-Pole 16 A Female MIXO Modular Insert?

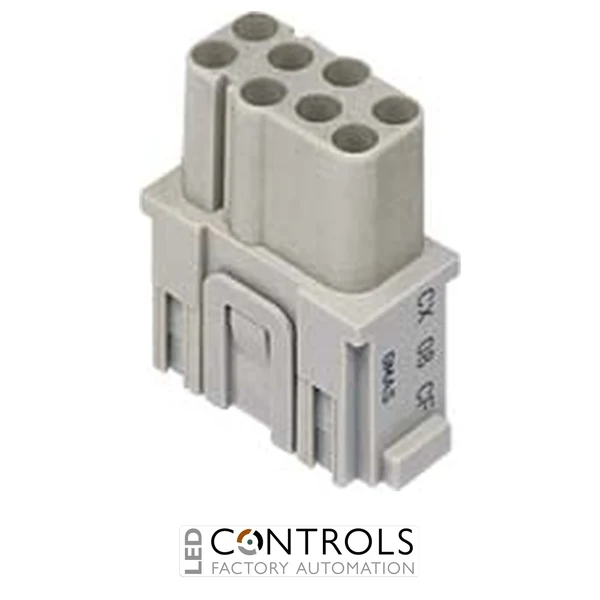

The ILME CX08CF is a compact 8-pole female modular insert designed for crimp connections within the ILME MIXO heavy-duty modular connector system. Occupying only one MIXO module, it provides eight electrical connection positions in a space-efficient format for industrial machinery, automation equipment and control systems.
The CX08CF is rated at 16 A and 400 V, with a 6 kV rated impulse withstand voltage at pollution degree 3. ILME also specifies an EN 61984 characteristic of 16 A, 400/690 V, 6 kV, pollution degree 2, while the rated voltage according to UL/CSA is 600 V.
Designed for crimp termination, the CX08CF is supplied without contacts, allowing suitable 16 A female crimp contacts to be selected separately for the required conductor size and plating. Compatible contacts cover conductor cross-sections from 0.14 mm² to 4 mm², providing considerable flexibility for industrial wiring applications.
Key Advantages
- Compact 8-pole female MIXO modular insert.
- 16 A current rating for industrial power and control circuits.
- 400 V rated voltage with 6 kV impulse withstand capability.
- Provides eight connection positions within only one MIXO module slot.
- Crimp termination provides secure and consistent conductor connections.
- Compatible with both standard and HNM (High Number of Matings) MIXO configurations.
Key Features
- ILME MIXO series.
- 8-pole female modular insert.
- 16 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- Crimp connection technology.
- 1-module footprint.
- Insulation resistance of ≥10 GΩ.
- Contact resistance of ≤1 mΩ.
Flexible 16 A Crimp Connectivity in One MIXO Module
The ILME MIXO system allows different power, control, signal and data connections to be combined within a single heavy-duty connector assembly. With eight female contact positions in one module, the CX08CF provides a high connection density while allowing other MIXO modules to be installed alongside it for additional electrical or communication functions.
The insert accepts separately ordered 16 A female crimp contacts for conductor sizes including 0.14–0.37, 0.5, 0.75, 1, 1.5, 2.5, 3 and 4 mm². Standard silver-plated and gold-plated contact options are available, allowing the connector configuration to be matched to the wiring and application requirements.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Motor and drive control connections.
- Robotics and automated manufacturing equipment.
- Electrical control cabinets and panels.
- Power and control distribution interfaces.
- Heavy-duty MIXO modular connector assemblies.
