Why Choose the ILME CX08I6F Female MIXO Gigabit Modular Insert?

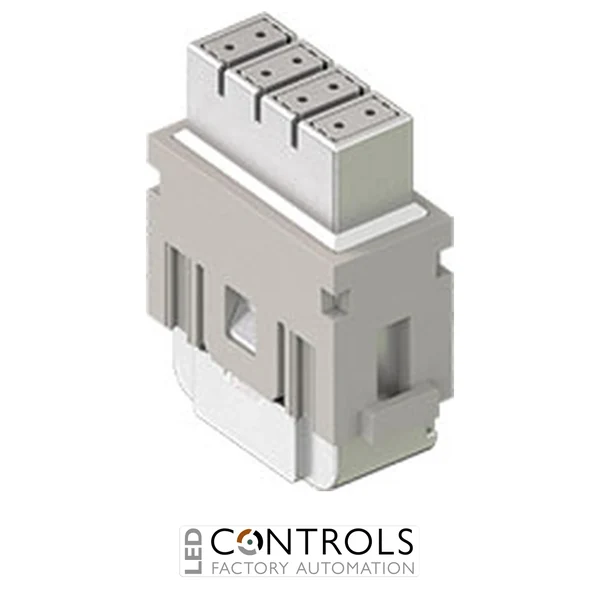

The ILME CX08I6F is a fully shielded 8-pole female modular insert with crimp connections, designed for high-speed industrial Ethernet and data transmission within the ILME MIXO modular connector system. As part of the advanced ILME MIXO Gigabit series, it provides a compact and robust interface for transmitting Ethernet signals through heavy-duty industrial connector assemblies.
Designed for Gigabit Ethernet Cat. 6A, Class EA applications, the CX08I6F supports frequencies up to 500 MHz and data transmission rates up to 10 Gbit/s. Its zinc-alloy shield helps protect sensitive data signals against electromagnetic interference, making the insert particularly suitable for machinery and automation environments containing motors, drives and switching equipment.
The CX08I6F provides 8 poles plus a shield connection in a single MIXO module and is rated at 5 A and 50 V. Compatible gold-plated female crimp contacts are ordered separately and support conductor cross-sections from 0.08–0.52 mm², allowing the insert to provide a reliable and serviceable high-speed communication interface for industrial Ethernet networks.
Key Advantages
- Fully shielded MIXO Gigabit modular insert for industrial Ethernet.
- 8 poles plus shield connection within a compact single-module format.
- Supports Gigabit Ethernet Cat. 6A, Class EA.
- High-speed transmission up to 10 Gbit/s.
- Supports communication frequencies up to 500 MHz.
- Zinc-alloy shielding helps protect data transmission against electromagnetic interference.
- Crimp termination with separately ordered gold-plated contacts provides reliable industrial connections.
- Shield is electrically separated from the PE circuit of the MIXO frame.
Key Features
- ILME MIXO Gigabit series.
- Female 8-pole plus shield modular insert.
- Crimp connection with shield.
- Single-module size.
- 5 A rated current.
- 50 V rated voltage.
- 0.8 kV rated impulse withstand voltage.
- Gigabit Ethernet Cat. 6A, Class EA performance up to 500 MHz.
- Data transmission rates up to 10 Gbit/s.
- Compatible with gold-plated female crimp contacts for 0.08–0.52 mm² conductors.
- ≥500 mating cycles for dependable repeated connection.
- ≤4 mΩ contact resistance and ≥10 GΩ insulation resistance.
High-Speed Gigabit Ethernet Connectivity for Industrial Automation
The ILME MIXO Gigabit range enables high-speed Ethernet communication to be incorporated into configurable heavy-duty industrial connectors. The CX08I6F provides eight data contacts plus shielding and supports Cat. 6A, Class EA transmission up to 500 MHz and 10 Gbit/s, making it suitable for modern machinery requiring high-bandwidth communication between controllers, computers, cameras and other networked equipment.
Its zinc-alloy shield helps maintain signal integrity in electrically noisy industrial environments, while the shield of the CX08I6F is electrically separated from the protective earth circuit of the MIXO frame. When combined with suitable MIXO frames, enclosures, cable clamping components and compatible gold-plated crimp contacts, the insert provides a robust industrial alternative to conventional data connections.
Typical Applications
- Industrial Gigabit Ethernet networks.
- PLC and distributed automation systems.
- Machine vision and industrial camera systems.
- Robotics and automated production equipment.
- Packaging and processing machinery.
- Machine tools and manufacturing systems.
- OEM machinery requiring high-speed shielded data connectivity.
