Why Choose the ILME CX12DF Female MIXO Modular Insert?

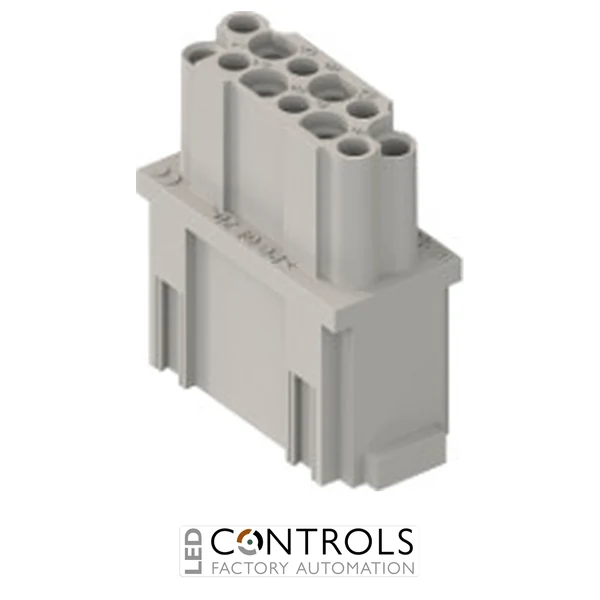

The ILME CX12DF is a compact female MIXO modular insert designed for reliable multi-pole electrical connections within heavy-duty industrial connector assemblies. Part of the versatile ILME MIXO modular connector series, it provides twelve poles with crimp termination while occupying only one module within a compatible MIXO frame.
The CX12DF is rated at 10 A and 250 V according to EN 61984, with a rated impulse withstand voltage of 4 kV and pollution degree 3. Its high contact density makes it particularly suitable for control, signal and auxiliary circuits where numerous connections need to be incorporated into a compact industrial connector assembly.
Featuring 12 female poles, the CX12DF uses separately ordered compatible female crimp contacts, allowing the contact and conductor size to be selected for the application. The insert supports both standard and HNM High Number of Matings configurations when used with appropriate components, while its polycarbonate construction and wide operating temperature range provide dependable service in industrial environments.
Key Advantages
- High-density 12-pole female modular insert for ILME MIXO connector systems.
- 10 A current rating suitable for industrial control, signal and auxiliary circuits.
- 250 V rated voltage with 4 kV impulse withstand capability.
- Compact 1-module format maximises connection density within MIXO frames.
- Secure crimp connection allows contacts to be selected for the required conductor size.
- Suitable for both standard and HNM High Number of Matings configurations with appropriate ILME components.
Key Features
- ILME MIXO modular connector series.
- 12-pole female modular insert.
- 10 A rated current.
- 250 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Pollution degree 3.
- Reliable crimp connection technology.
- Compact 1-module MIXO format.
- Minimum 500 mating cycles.
- Polycarbonate insulating body with UL 94 V-0 flammability rating.
Reliable High-Density Connections for Industrial Equipment
High-density modular connectors allow numerous control, signal and auxiliary circuits to be routed through a compact detachable industrial interface. The ILME CX12DF provides twelve electrical connections within only one MIXO module, helping machine builders maximise connector density without sacrificing the flexibility of a configurable modular system.
The crimp termination design allows compatible contacts to be selected according to the wiring requirements of the application, while the MIXO architecture enables the CX12DF to be installed alongside suitable power, data and specialist modules. This makes it a flexible solution for industrial machinery and automation equipment requiring compact, serviceable multi-pole connectivity.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Control and auxiliary electrical circuits.
- Signal connections and instrumentation.
- Robotics and material handling equipment.
- Configurable heavy-duty industrial connector assemblies.
