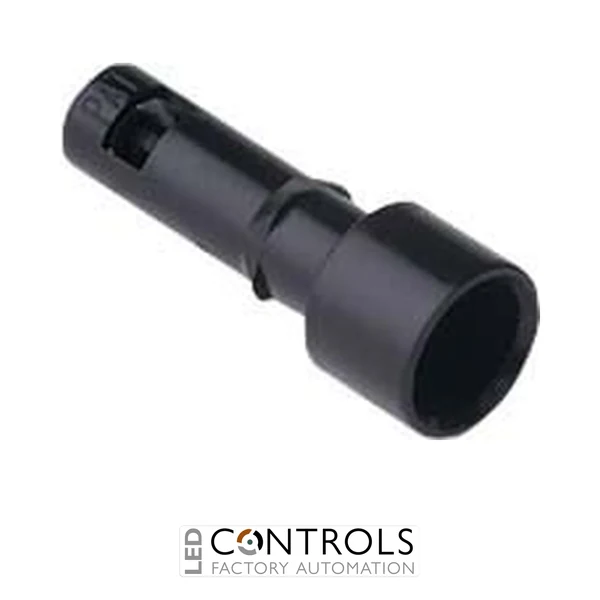

CX16PF Ilme Female pneumatic contact without closing valve 1.6mm
ILME CX1.6PF is a female MIXO pneumatic contact without a closing valve, designed for detachable industrial compressed-air connections using tubing with a 1.6 mm internal diameter.
SKU:CX1.6PFAlt SKU:CX 1.6 PFMPN:CX1.6PF
Price
List Price£3.61ex VAT
Your Price (ex VAT)
£3.61
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
Why Choose the ILME CX1.6PF Female Pneumatic Contact?
The ILME CX1.6PF, also identified as CX 1.6 PF, is a compact female pneumatic contact without a closing valve designed for use within ILME MIXO modular pneumatic connector systems. It provides a detachable compressed-air connection for tubing with an internal diameter of 1.6 mm, making it suitable for machinery and automation applications requiring pneumatic services within a modular industrial connector.
The CX1.6PF is a female contact manufactured from durable polyamide and uses a hose-barb connection for the pneumatic tube. Because this version is supplied without a closing valve, the pneumatic path is not automatically shut off when the connector is unmated, making it appropriate where an external valve or system-level isolation arrangement is used.
Designed as part of the ILME MIXO Pneumatic range, the CX1.6PF can be installed in compatible pneumatic modules such as the CX03P. MIXO technology enables pneumatic connections to be incorporated alongside compatible electrical power, control, data and communication modules within a single heavy-duty connector assembly.
Key Advantages
Purpose-designed female pneumatic contact for ILME MIXO systems.
Suitable for tubing with an internal diameter of 1.6 mm.
Without closing valve for applications where automatic isolation at disconnection is not required.
Durable polyamide construction for industrial connector applications.
Enables pneumatic circuits to be integrated with compatible electrical and data connections in a modular MIXO assembly.
Key Features
ILME MIXO Pneumatic series.
Female pneumatic contact.
Designed for 1.6 mm internal-diameter tubing.
Without closing valve.
Hose-barb pneumatic tube connection.
Polyamide (PA) main construction material.
Designed for compatible ILME MIXO pneumatic modular inserts.
Compact contact dimensions for space-efficient modular connector assemblies.
Individual contact weight of approximately 0.48 g.
Reliable Pneumatic Connections for Industrial Machinery
ILME MIXO pneumatic contacts allow compressed-air services to be incorporated into the same modular connector architecture used for electrical and communication connections. This can simplify machine interfaces by reducing the number of separate connection points required between fixed and removable equipment.
The CX1.6PF provides a female connection for 1.6 mm internal-diameter pneumatic tubing and is designed without an integral shut-off valve. When installed in a compatible MIXO pneumatic module and connector assembly, it provides a compact detachable pneumatic interface for automation equipment, machinery and other industrial systems.
Typical Applications
Industrial machinery pneumatic connections.
Factory automation and robotic systems.
Pneumatic actuator and control circuits.
Packaging and processing machinery.
Automated production and assembly equipment.
ILME MIXO modular connectors combining pneumatic, electrical and data services.
Technical Specifications
Tick the specs you need, then view products that match.
Contact Gender
Female
Device Type
Contact
Housing Material
Thermoplastic
Product Series
ILME MIXO
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
ILME
Series
MIXO Pneumatic
Model
CX1.6PF / CX 1.6 PF
Product type
Pneumatic contact
Gender
Female
Connection type
Pneumatic hose-barb connection
Tube size
1.6 mm internal diameter
Closing valve
No
Main material
Polyamide (PA)
Contact body diameter
6.25 mm
Overall mating-side diameter
8.25 mm
Body length
19 mm
Overall length
23 mm
Weight
0.48 g
RoHS conformity
Compliant
EAN
8015747041980
Frequently Asked Questions
What is the ILME CX1.6PF used for?
The CX1.6PF is a female pneumatic contact used in compatible ILME MIXO pneumatic modules to provide a detachable compressed-air connection in industrial machinery and automation equipment.
What tube size fits the CX1.6PF?
The CX1.6PF is designed for pneumatic tubing with an internal diameter of 1.6 mm.
Does the CX1.6PF have a closing valve?
No. The CX1.6PF is specifically designed without a closing valve, so it does not automatically isolate the pneumatic line when the connector is unmated.
Is the CX1.6PF a male or female pneumatic contact?
The CX1.6PF is the female version. The corresponding ILME male contact without a closing valve for 1.6 mm internal-diameter tubing is the CX1.6PM.
Which connector system is the CX1.6PF designed for?
The CX1.6PF forms part of the ILME MIXO Pneumatic system and is designed for installation in compatible MIXO pneumatic modular inserts, including the CX03P.
