Why Choose the ILME CX1.6PM Male Pneumatic Contact?

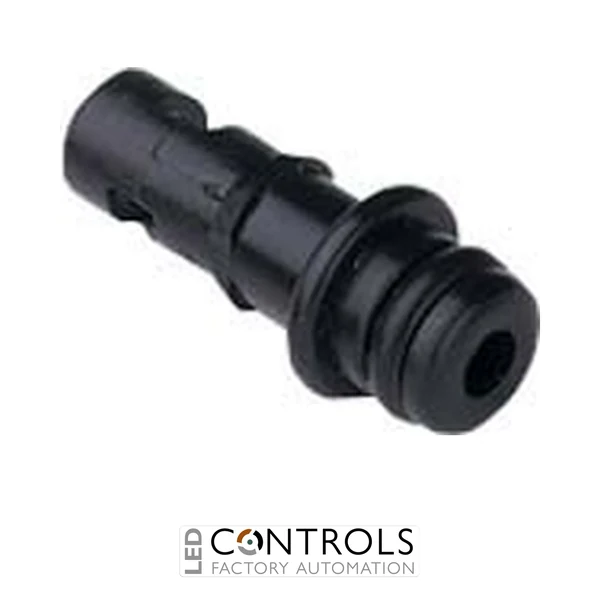

The ILME CX1.6PM is a compact male pneumatic contact without a closing valve, designed for routing compressed air through compatible ILME modular connector systems. Manufactured for tubes with an internal diameter of 1.6 mm, it provides a practical solution for combining pneumatic and electrical services within industrial machinery and automation installations.
As part of the ILME CX / MIXO modular connector system, the CX1.6PM allows pneumatic connections to be incorporated into modular multipole connector assemblies. Its male contact format is designed for use with the corresponding pneumatic module, helping machine builders create compact, serviceable interfaces between fixed and removable equipment.
The contact is manufactured primarily from polyamide (PA) and is specified for an operating temperature range from -40 °C to +125 °C. The version is supplied without a closing valve, making it suitable where unrestricted pneumatic flow through the disconnected contact arrangement is appropriate for the application.
Key Advantages
- Compact male pneumatic contact for modular industrial connectors.
- Designed for tubing with a 1.6 mm internal diameter.
- Without closing valve for straightforward pneumatic connection.
- Compatible with the ILME CX / MIXO modular connection system.
- Durable polyamide construction for industrial applications.
- Wide operating temperature capability from -40 °C to +125 °C.
Key Features
- ILME CX pneumatic contact series.
- Male connection.
- Suitable for 1.6 mm internal-diameter tubing.
- Without closing valve.
- Main material: polyamide (PA).
- Designed for integration into compatible modular pneumatic connector inserts.
- Suitable for industrial machinery, automation and modular connection systems.
Reliable Pneumatic Connectivity for Modular Systems
ILME modular connectors allow electrical signals, power and pneumatic circuits to be combined within a single industrial connector assembly. Pneumatic contacts such as the CX1.6PM provide a compact interface for transferring compressed air between machine sections while retaining the flexibility and serviceability associated with modular connector systems.
The CX1.6PM is particularly useful in machinery where electrical and pneumatic services need to be connected or disconnected together. Its compact dimensions and broad temperature capability make it suitable for demanding automation, production and machine-building environments.
Typical Applications
- Industrial machinery pneumatic connections.
- Automation equipment and production lines.
- Robotic and handling systems.
- Modular machine interfaces.
- Combined electrical and pneumatic connector assemblies.
- OEM machinery and control-system installations.
