Why Choose the ILME CX17DF Female 17-Pole Crimp Modular Insert?

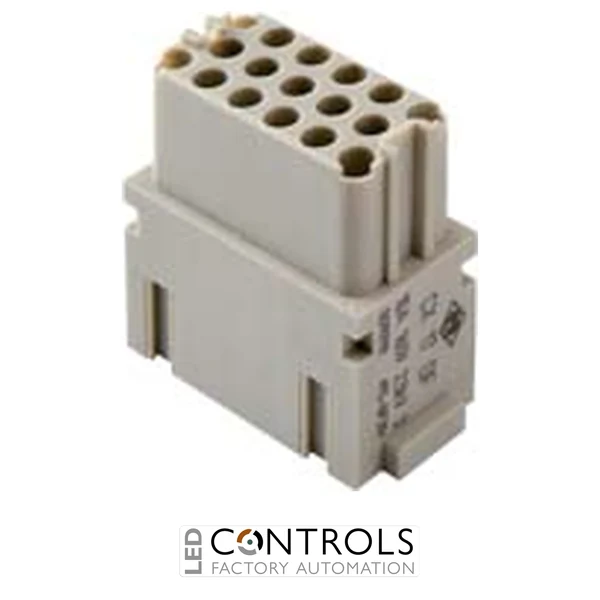

The ILME CX17DF is a high-density 17-pole female modular insert with crimp connections, designed for reliable signal, control and low-power connections within the ILME MIXO modular connector system. As part of the versatile ILME MIXO series, it provides 17 contact positions with a rated current of 10 A and rated voltage of 160 V while occupying only one module in a compatible MIXO frame.
The CX17DF uses removable female crimp contacts, allowing the appropriate silver-plated or gold-plated contact to be selected according to conductor size and application requirements. Compatible ILME CDF contacts accommodate conductor cross-sections from 0.14–2.5 mm² (AWG 26–14), providing flexibility for machine builders, panel builders and automation engineers while maintaining secure and serviceable electrical connections.
With a rated impulse withstand voltage of 2.5 kV, pollution degree 3 and a wide -40 °C to +125 °C operating temperature range, the CX17DF is engineered for demanding industrial environments. Its high-density single-module design makes it particularly useful where numerous control or signal circuits must be accommodated within a compact heavy-duty connector assembly.
Key Advantages
- High-density female 17-pole modular insert for ILME MIXO connector systems.
- 10 A rated current for dependable industrial signal, control and low-power connections.
- 160 V rated voltage with a 2.5 kV rated impulse withstand voltage.
- Crimp termination provides secure, reliable and serviceable conductor connections.
- Compatible contacts support conductor sizes from 0.14–2.5 mm² (AWG 26–14).
- Silver-plated and gold-plated compatible crimp contact options are available.
- Single-module footprint provides 17 contact positions in a compact MIXO assembly.
- Wide -40 °C to +125 °C operating temperature range for demanding industrial environments.
Key Features
- ILME MIXO modular connector series.
- Female 17-pole modular insert.
- Crimp connection technology.
- Single-module size.
- 10 A rated current.
- 160 V rated voltage.
- 2.5 kV rated impulse withstand voltage.
- Compatible with separately ordered ILME CDF female crimp contacts.
- Contact options for 0.14–2.5 mm² conductors.
- ≤3 mΩ contact resistance.
- ≥10 GΩ insulation resistance.
- ≥500 mating cycles for dependable repeated connection.
- Polycarbonate construction with UL 94 V-0 flammability rating.
High-Density Crimp Connectivity for Industrial Machinery
Crimp connections provide mechanically secure and electrically reliable conductor termination, making them well suited to industrial machinery exposed to vibration and repeated operating cycles. The ILME CX17DF uses separately ordered female CDF contacts, enabling contact material and conductor size to be selected according to the requirements of the installation.
The MIXO modular system allows power, control, signal, data, pneumatic and other connection technologies to be combined within configurable heavy-duty connectors. Because the CX17DF provides 17 contact positions within only one module, it is particularly suitable for high-density control and signal wiring where connector space is limited.
Typical Applications
- Industrial machinery and automation systems.
- High-density control and signal wiring.
- Control panels and electrical cabinets.
- Robotics and automated production equipment.
- Packaging and processing machinery.
- Machine tools and manufacturing systems.
- Material handling and conveyor equipment.
- OEM machinery and modular connector assemblies.
