Why Choose the ILME CX25IBM 25-Pole 4 A Male MIXO HNM Modular Insert?

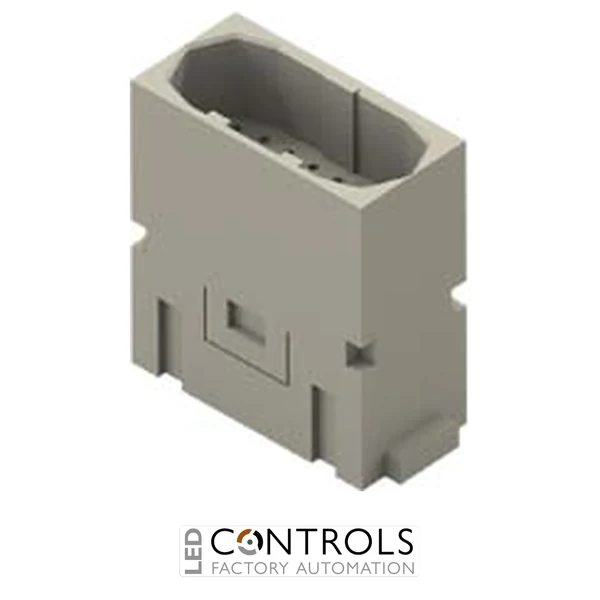

The ILME CX25IBM is a high-density 25-pole male modular insert designed for crimp-terminated signal and control connections within the ILME MIXO heavy-duty modular connector system. Occupying only one MIXO module, it provides 25 individual circuits in a compact format, making it ideal where high connection density is required within limited connector space.
The CX25IBM is rated at 4 A and 50 V, with a 0.8 kV rated impulse withstand voltage at pollution degree 3. ILME also specifies an alternative EN 61984 characteristic of 4 A, 160 V, 2.5 kV, pollution degree 2, while its UL/CSA rated voltage is 600 V.
Designed as an HNM (High Number of Mating cycles) insert, the CX25IBM can achieve at least 10,000 mating cycles when used in the appropriate HNM connector system. It accepts separately ordered gold-plated HNM male crimp contacts for conductor cross-sections from 0.08 mm² to 0.75 mm², providing a durable solution for frequently connected industrial control and signal interfaces.
Key Advantages
- High-density 25-pole male MIXO modular insert.
- Occupies only one MIXO module slot while providing 25 circuits.
- 4 A, 50 V rating for industrial signal and control connections.
- HNM design supports at least 10,000 mating cycles.
- Crimp termination provides consistent and secure conductor connections.
- Accepts conductors from 0.08 mm² to 0.75 mm².
Key Features
- ILME MIXO HNM series.
- 25-pole male modular insert.
- 4 A rated current.
- 50 V rated voltage.
- 0.8 kV rated impulse withstand voltage.
- Pollution degree 3.
- Crimp connection technology.
- 1-module footprint.
- Insulation resistance of ≥10 GΩ.
- Mechanical life of ≥10,000 mating cycles.
High-Density Connectivity for Frequent Mating Applications
The ILME MIXO modular system allows power, signal, control and data connections to be combined within a common heavy-duty connector assembly. The CX25IBM provides 25 male contact positions within a single module slot, maximising circuit density while leaving other MIXO frame positions available for additional connection technologies.
For HNM applications, the CX25IBM uses gold-plated RIMD male crimp contacts. Contact options support conductor ranges of 0.08–0.21 mm², 0.13–0.33 mm², 0.33–0.52 mm² and 0.52–0.75 mm². Combined with suitable MIXO HNM frames and connector components, the system provides a mechanical life of at least 10,000 mating cycles.
Typical Applications
- Industrial machinery and production equipment.
- Test benches and frequently reconfigured systems.
- Factory automation and control equipment.
- PLC and distributed I/O connections.
- Instrumentation and sensor wiring.
- Robotics and automated manufacturing equipment.
- High-density heavy-duty modular connector assemblies.
