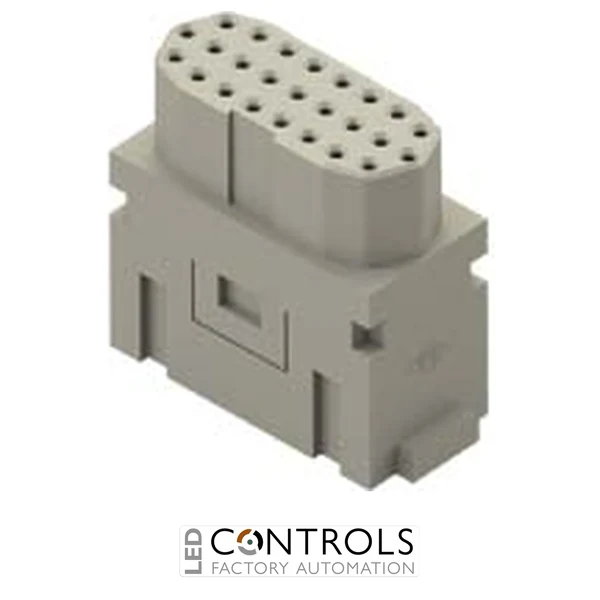

Why Choose the ILME CX25IF Female MIXO Modular Insert?
The ILME CX25IF is a high-density female MIXO modular insert designed for multi-pole signal and control connections within heavy-duty industrial connector assemblies. Part of the versatile ILME MIXO modular connector series, it provides 25 female poles within a compact modular format, making it particularly suitable for applications where a large number of low-current circuits must be accommodated in limited connector space.
The CX25IF has a rated current of 5 A and is designed for use with compatible crimp contacts selected to suit the conductor and application. Its high contact density makes it well suited to PLC interfaces, instrumentation, automation equipment, sensor circuits and other industrial systems requiring numerous control or signal connections through a single detachable connector assembly.
As part of the MIXO platform, the 25-pole female insert can be combined with compatible power, data, pneumatic and specialist modules within an appropriate MIXO frame and ILME heavy-duty enclosure. This modular architecture enables machine builders and automation engineers to create connector configurations tailored to individual equipment requirements.
Key Advantages
- High-density 25-pole female modular insert for industrial signal and control connections.
- 5 A rated current suitable for low-current automation and instrumentation circuits.
- Compact MIXO construction helps maximise the number of connections within a single enclosure.
- Reliable crimp connection technology provides secure conductor termination.
- Modular architecture allows signal circuits to be combined with compatible power, data and specialist MIXO modules.
- Ideal for machinery and automation systems requiring numerous detachable electrical connections.
Key Features
- ILME MIXO modular connector series.
- 25-pole female modular insert.
- 5 A rated current.
- High-density contact arrangement for control and signal circuits.
- Reliable crimp connection system.
- Compatible crimp contacts are selected separately to suit the conductor.
- Designed for installation within compatible ILME MIXO modular frames.
- Can be combined with other MIXO power, signal, data and specialist modules.
High-Density Connectivity for Industrial Automation
Industrial machinery often requires numerous sensor, actuator, instrumentation and control connections between equipment sections. High-density modular inserts such as the ILME CX25IF allow many of these circuits to be routed through a compact detachable interface, simplifying equipment installation, servicing and replacement.
The MIXO modular system also allows the CX25IF to operate alongside compatible modules carrying power, data or other services. This enables machine builders to consolidate multiple connection types into a single heavy-duty connector assembly while retaining modularity and serviceability.
Typical Applications
- Industrial machinery and machine building.
- PLC and industrial control connections.
- Sensor and actuator circuits.
- Factory automation and production equipment.
- Instrumentation and low-current signal connections.
- Robotics and material handling systems.
