Why Choose the Ilme CX3.0PF Female Pneumatic Contact?

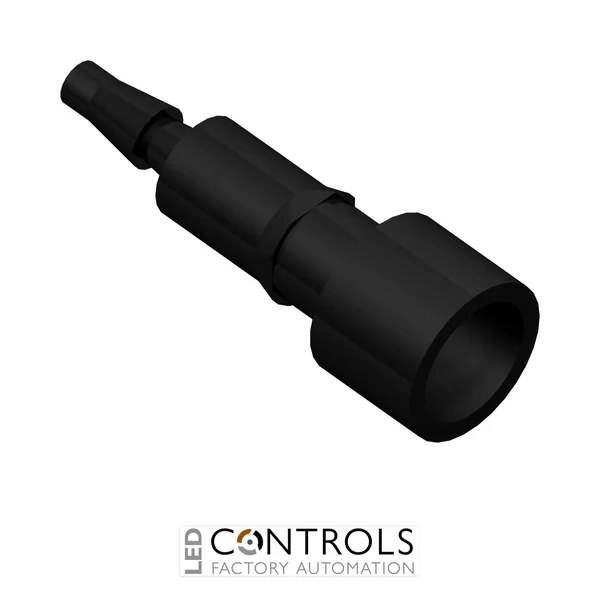

The Ilme CX3.0PF is a female thermoplastic pneumatic contact without a closing valve, designed for compressed-air connections within compatible Ilme MIXO modular connector assemblies. It is specifically designed for pneumatic tubing with a 3 mm internal diameter, providing a compact solution for integrating air lines into heavy-duty industrial connector systems.
Part of the Ilme MIXO Pneumatic range, the CX3.0PF features a straight tube connection and a durable polyamide (PA) body. Unlike the corresponding CX3.0VC valved female contact, the CX3.0PF has no automatic closing valve, allowing an open pneumatic path when the connector is separated.
The CX3.0PF is designed for installation in compatible MIXO pneumatic modules and provides dependable performance in industrial machinery and automation applications. With an ambient temperature range of -40 °C to +80 °C, insulation resistance of at least 10 GΩ and a mechanical life of at least 500 mating cycles, it is engineered for repeatable detachable pneumatic connections.
Key Advantages
Female pneumatic contact for Ilme MIXO modular connector systems.
Designed for pneumatic tubing with a 3 mm internal diameter.
Without closing valve for applications where automatic air shut-off is not required.
Durable polyamide construction provides a lightweight industrial connection solution.
≥ 500 mating cycles support repeated connection and disconnection.
Allows compressed-air services to be incorporated into configurable MIXO heavy-duty connector assemblies.
Key Features
Ilme MIXO Pneumatic series.
Female pneumatic contact.
Thermoplastic construction.
Manufactured from polyamide (PA).
RAL 9005 black colour.
Designed for 3 mm ID pneumatic tubing.
Straight contact configuration.
No closing / shut-off valve.
Designed for compatible MIXO pneumatic modular inserts.
≥ 10 GΩ insulation resistance.
-40 °C to +80 °C ambient temperature range.
≥ 500 mating-cycle mechanical life.
Compact Pneumatic Connectivity for MIXO Assemblies
The Ilme MIXO Pneumatic system enables compressed-air circuits to be incorporated into modular heavy-duty connector assemblies alongside compatible electrical, signal and data functions. The CX3.0PF provides a compact female connection for 3 mm ID pneumatic tubing, making it suitable for machinery interfaces where multiple services need to be connected and disconnected together.
Because the CX3.0PF is supplied without a closing valve, it does not automatically shut off the pneumatic path when the connector is uncoupled. This makes it suitable for circuits where automatic isolation is unnecessary or where pressure is controlled elsewhere in the pneumatic system. For applications requiring automatic shut-off on the female side, the corresponding valved CX3.0VC contact can be selected instead.
Typical Applications
Industrial pneumatic control systems.
Factory automation equipment.
Pneumatic actuators and cylinders.
Robotics and automated handling systems.
Production and packaging machinery.
Machine compressed-air distribution.
Detachable machinery service interfaces.
OEM equipment using Ilme MIXO modular connectors.
Technical Specifications
Tick the specs you need, then view products that match.
Contact Gender
Female
Device Type
Contact
Product Series
ILME MIXO
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
Ilme
Series
MIXO Pneumatic
Model
CX3.0PF
Manufacturer part number
CX 3.0 PF
Alternative catalogue reference
CX30PF
Product type
Pneumatic contact
Contact gender
Female
Connection type
Female connection
Contact configuration
Straight
Tube size
3 mm ID
Tube measurement
Internal diameter
Closing valve
No
Contact material
Polyamide (PA)
Colour
RAL 9005 black
Insulation resistance
≥ 10 GΩ
Ambient temperature range
-40 °C to +80 °C
Mechanical life
≥ 500 mating cycles
Contact diameter
8.4 mm
Contact length
25.4 mm
Connection medium
Compressed air
Connector system
Ilme MIXO
EAN
8015747042086
Frequently Asked Questions
What is the Ilme CX3.0PF?
The CX3.0PF is a female thermoplastic pneumatic contact for compatible Ilme MIXO modular connector systems, designed for compressed-air tubing with a 3 mm internal diameter.
What size pneumatic tube does the CX3.0PF accept?
The CX3.0PF is designed for pneumatic tubing with an internal diameter of 3 mm.
Does the CX3.0PF have a closing valve?
No. The CX3.0PF is a female pneumatic contact without a closing valve, so it does not automatically close the pneumatic path when the connector is separated.
What material is the CX3.0PF made from?
The CX3.0PF has a polyamide (PA) thermoplastic body in RAL 9005 black.
What is the difference between the CX3.0PF and CX3.0VC?
Both are female pneumatic contacts for 3 mm ID tubing. The CX3.0PF is supplied without a closing valve, while the CX3.0VC incorporates a closing valve for automatic pneumatic isolation when uncoupled.
What is the mechanical life of the CX3.0PF?
The CX3.0PF is specified for a mechanical life of at least 500 mating cycles, making it suitable for industrial machinery interfaces requiring repeated connection and disconnection.
Trusted by Industrial Connectivity Professionals
Ilme MIXO Pneumatic components enable machine builders, panel builders and automation engineers to incorporate compressed-air services into configurable heavy-duty connector assemblies, creating compact and serviceable interfaces for industrial machinery and automated equipment.
