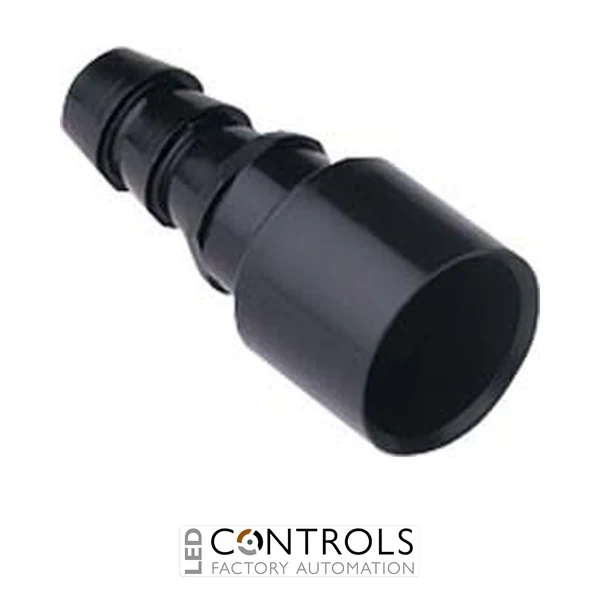

Why Choose the Ilme CX4.0PF Female Pneumatic Contact?
The Ilme CX4.0PF is a female pneumatic contact without a closing valve, designed for compressed-air connections within compatible Ilme MIXO modular heavy-duty connector assemblies. It is intended for pneumatic tubing with a 4 mm internal diameter, providing a compact connection for machinery, automation and pneumatic control applications.
Part of the Ilme MIXO Pneumatic range, the CX4.0PF allows pneumatic services to be incorporated into configurable modular connector interfaces alongside compatible power, signal and data functions. Its removable contact format supports flexible connector configuration and enables individual pneumatic contacts to be serviced or replaced when required.
The CX4.0PF is supplied without an integrated closing valve, meaning the pneumatic path is not automatically shut off when the connector is uncoupled. This makes it suitable for systems where pressure isolation is provided elsewhere or where automatic shut-off at the connector is unnecessary.
Key Advantages
Female pneumatic contact for compatible Ilme MIXO pneumatic modules.
Designed for pneumatic tubing with a 4 mm internal diameter.
Without closing valve for applications where automatic pneumatic isolation is not required.
Compact removable design supports straightforward installation and servicing.
Allows compressed-air circuits to be integrated into MIXO modular connector assemblies.
Suitable for machinery and automation systems requiring detachable pneumatic connections.
Key Features
Ilme MIXO Pneumatic series.
Female pneumatic contact.
Designed for 4 mm ID pneumatic tubing.
Tube size specified by internal diameter.
No closing / shut-off valve.
Removable pneumatic contact format.
Designed for installation in compatible MIXO pneumatic modular inserts.
Suitable for applications where pneumatic isolation is managed separately.
Compact Pneumatic Connectivity for MIXO Assemblies
Ilme MIXO Pneumatic components enable compressed-air circuits to be incorporated into modular heavy-duty connector assemblies. The CX4.0PF provides the female pneumatic interface for suitable 4 mm ID tubing, allowing pneumatic services to be grouped with other compatible MIXO connection functions in a single configurable machinery interface.
Because the CX4.0PF is supplied without a closing valve, disconnecting the connector does not automatically isolate the pneumatic circuit at this contact. It is therefore suited to installations where the air supply is isolated elsewhere in the system or where an automatically valved connection is not required.
Typical Applications
Industrial pneumatic control systems.
Factory automation equipment.
Pneumatic actuators and cylinders.
Robotics and automated handling equipment.
Production and packaging machinery.
Machine compressed-air distribution.
Detachable machinery service interfaces.
OEM equipment using Ilme MIXO modular connectors.
Technical Specifications
Tick the specs you need, then view products that match.
Contact Gender
Female
Device Type
Contact
Product Series
ILME MIXO
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
Ilme
Series
MIXO Pneumatic
Model
CX4.0PF
Manufacturer part number
CX 4.0 PF
Alternative reference
CX40PF
Product type
Pneumatic contact
Contact gender
Female
Connection type
Female pneumatic connection
Tube size
4 mm ID
Tube measurement
Internal diameter
Closing valve
No
Contact type
Removable
Connection medium
Compressed air
Connector system
Ilme MIXO Pneumatic
Application
Modular industrial pneumatic connections
Frequently Asked Questions
What is the Ilme CX4.0PF?
The CX4.0PF is a female pneumatic contact without a closing valve, designed for compressed-air connections within compatible Ilme MIXO modular connector systems.
What size pneumatic tubing is the CX4.0PF designed for?
The CX4.0PF is designed for pneumatic tubing with a 4 mm internal diameter (ID).
Does the CX4.0PF have a closing valve?
No. The CX4.0PF is supplied without a closing or shut-off valve, so the pneumatic path is not automatically closed by the contact when the connector is uncoupled.
Is the CX4.0PF a male or female contact?
The CX4.0PF is a female pneumatic contact for use with the appropriate mating contact and compatible MIXO pneumatic module.
Can the CX4.0PF be used in an Ilme MIXO connector?
Yes. The CX4.0PF is part of the Ilme MIXO Pneumatic system and is designed for installation in a compatible MIXO pneumatic modular insert.
When should a non-valved pneumatic contact be used?
A non-valved contact such as the CX4.0PF is suitable where automatic shut-off at the connector is not required, for example when pneumatic pressure is isolated or controlled elsewhere in the machine's air circuit.
Trusted by Industrial Connectivity Professionals
Ilme MIXO Pneumatic components provide machine builders, panel builders and automation engineers with a flexible way to integrate compressed-air services into configurable heavy-duty connector assemblies for industrial machinery and automated equipment.
Contact Gender
Female
Device Type
Contact
Product Series
ILME MIXO
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
Ilme
Series
MIXO Pneumatic
Model
CX4.0PF
Manufacturer part number
CX 4.0 PF
Alternative reference
CX40PF
Product type
Pneumatic contact
Contact gender
Female
Connection type
Female pneumatic connection
Tube size
4 mm ID
Tube measurement
Internal diameter
Closing valve
No
Contact type
Removable
Connection medium
Compressed air
Connector system
Ilme MIXO Pneumatic
Application
Modular industrial pneumatic connections
