Why Choose the ILME CX4.0PM Male Pneumatic Contact?

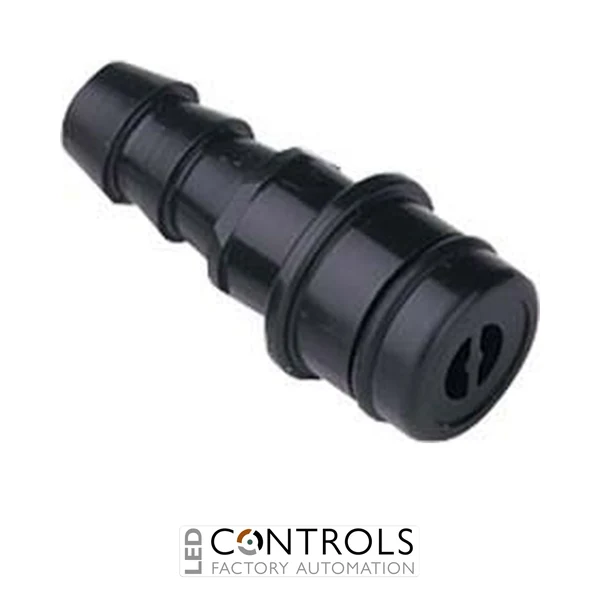

The ILME CX4.0PM is a compact male pneumatic contact without a closing valve, designed for routing compressed air through compatible ILME MIXO modular connector assemblies. Designed for pneumatic tubing with a 4.0 mm internal diameter, it provides a reliable connection solution for industrial machinery, automation equipment and modular machine interfaces.
As part of the ILME CX / MIXO modular connector system, the CX4.0PM enables pneumatic circuits to be incorporated alongside electrical power, signal and data connections within a single heavy-duty connector assembly. This modular approach helps machine builders create compact, configurable interfaces while reducing the number of separate connection points required between machine sections.
The CX4.0PM is the male version without a closing valve, providing an open pneumatic path when disconnected. Its 4.0 mm internal-diameter tube connection makes it suitable for applications requiring a larger pneumatic passage while retaining the flexibility and compact format of the ILME MIXO modular system.
Key Advantages
- Compact male pneumatic contact for industrial modular connectors.
- Designed for tubing with a 4.0 mm internal diameter.
- Without closing valve for straightforward pneumatic connection.
- Compatible with the ILME CX / MIXO modular connector system.
- Allows pneumatic connections to be combined with electrical, signal and data services.
- Suitable for modular machinery requiring convenient connection and disconnection of compressed-air circuits.
Key Features
- ILME CX / MIXO pneumatic contact.
- Male connection.
- Suitable for 4.0 mm internal-diameter tubing.
- Without closing valve.
- Designed for compatible ILME pneumatic modular inserts.
- Compact contact format for mixed-service industrial connectors.
- Suitable for compressed-air systems in industrial automation and machinery.
Reliable Pneumatic Connectivity for Modular Machinery
ILME MIXO modular connectors provide a flexible method of combining multiple connection technologies within one industrial connector assembly. Pneumatic contacts such as the CX4.0PM allow compressed-air lines to pass through the same modular interface as electrical power, control signals and data, helping simplify machinery installation, maintenance and servicing.
The non-valved male configuration makes the CX4.0PM suitable for correctly matched pneumatic contact arrangements where automatic shut-off is not required on the male side. It is particularly useful in detachable machine sections, automated production equipment and OEM machinery requiring a robust modular pneumatic interface.
Typical Applications
- Industrial machinery pneumatic connections.
- Factory automation and production equipment.
- Robotic and material-handling systems.
- Modular machine and production-line interfaces.
- Combined electrical and pneumatic connector assemblies.
- OEM machinery and automated manufacturing systems.
