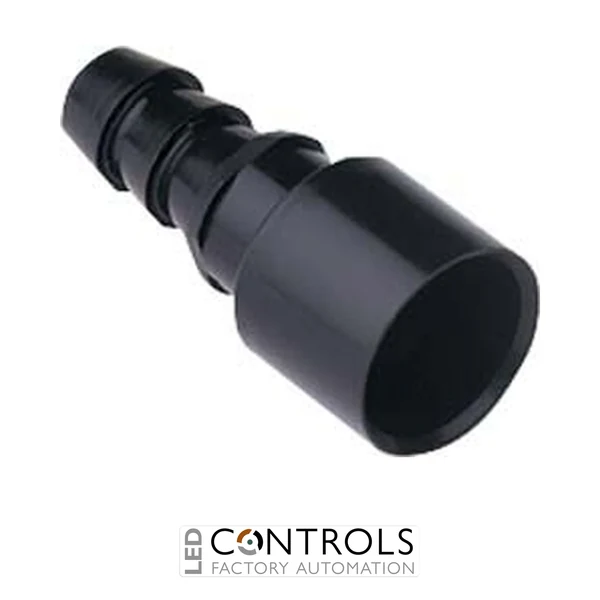

CX60PF Ilme Female pneumatic contact without closing valve 6.0mm
ILME CX6.0PF is a female polyamide MIXO pneumatic contact without a closing valve, designed for 6 mm internal-diameter tubing in modular industrial connector systems.
SKU:CX6.0PFAlt SKU:CX 6.0 PFMPN:CX6.0PF
Price
List Price£1.29ex VAT
Your Price (ex VAT)
£1.29
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
Why Choose the ILME CX6.0PF Female MIXO Pneumatic Contact?
The ILME CX6.0PF is a female thermoplastic pneumatic contact without a closing valve, designed for use within ILME MIXO modular pneumatic connector systems. It provides a compact and dependable way to incorporate compressed-air connections into heavy-duty industrial connector assemblies used in machinery and automation equipment.
The CX6.0PF is specifically designed for pneumatic tubing with an internal diameter of 6 mm. Its straight connection format and durable polyamide (PA) construction make it suitable for demanding industrial installations where pneumatic services need to be connected and disconnected as part of a modular interface.
Unlike valved female pneumatic contacts, the CX6.0PF is supplied without a closing valve, providing an unrestricted pneumatic connection when correctly mated. It is designed for installation in compatible ILME MIXO pneumatic modules, including the CX02P, and offers a mechanical life of at least 500 mating cycles.
Key Advantages
Female pneumatic contact for ILME MIXO modular connector systems.
Designed specifically for tubing with a 6 mm internal diameter.
Without closing valve for a straightforward pneumatic connection.
Durable polyamide (PA) construction for industrial applications.
Compact straight-contact design simplifies integration into modular connector assemblies.
Mechanical durability of at least 500 mating cycles.
Key Features
ILME MIXO pneumatic contact system.
Female contact configuration.
Without closing valve.
Suitable for tubing with 6 mm internal diameter.
Straight pneumatic contact design.
Manufactured from polyamide (PA).
Black RAL 9005 contact body.
Mechanical life of ≥ 500 mating cycles.
Insulation resistance of ≥ 10 GΩ.
Compatible with suitable ILME MIXO pneumatic modular units.
Reliable Modular Pneumatic Connectivity
ILME MIXO pneumatic components enable compressed-air connections to be incorporated into configurable industrial connector assemblies. This modular approach is particularly useful for automated machinery where pneumatic services need to be connected through a compact, removable machine interface.
The CX6.0PF provides a female connection for 6 mm ID pneumatic tubing without an automatic shut-off mechanism. Compatible pneumatic contacts and modules can be combined to create connector configurations suited to individual machinery and automation requirements.
Tick the specs you need, then view products that match.
Contact Gender
Female
Device Type
Contact
Housing Material
Thermoplastic
Product Series
ILME MIXO
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
ILME
Series
MIXO / CX Pneumatic
Model
CX6.0PF
Manufacturer part number
CX 6.0 PF
Product type
Pneumatic contact
Gender
Female
Specification
Without closing valve
Connection orientation
Straight
Tube size
6 mm internal diameter
Main material
Polyamide (PA)
Colour
Black, RAL 9005
Insulation resistance
≥ 10 GΩ
Mechanical life
≥ 500 mating cycles
Weight
1 g
EAN
8015747096096
RoHS conformity
Compliant
Frequently Asked Questions
What is the ILME CX6.0PF used for?
The CX6.0PF is a female pneumatic contact used to provide a detachable compressed-air connection within compatible ILME MIXO modular industrial connector assemblies.
What size tubing is compatible with the CX6.0PF?
The CX6.0PF is designed for pneumatic tubing with an internal diameter of 6 mm.
Does the CX6.0PF have a closing valve?
No. The ILME CX6.0PF is specifically designed without a closing valve.
What material is the CX6.0PF manufactured from?
The pneumatic contact is manufactured primarily from durable polyamide (PA) and has a black RAL 9005 finish.
Which modular system is the CX6.0PF designed for?
The CX6.0PF is designed for the ILME MIXO modular connector system and can be installed in compatible pneumatic modules such as the CX02P.
Trusted Industrial Connectivity from ILME
ILME MIXO pneumatic connectivity components provide machine builders and automation engineers with configurable, durable solutions for integrating compressed-air connections into modular industrial machinery interfaces.
Contact Gender
Female
Device Type
Contact
Housing Material
Thermoplastic
Product Series
ILME MIXO
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
ILME
Series
MIXO / CX Pneumatic
Model
CX6.0PF
Manufacturer part number
CX 6.0 PF
Product type
Pneumatic contact
Gender
Female
Specification
Without closing valve
Connection orientation
Straight
Tube size
6 mm internal diameter
Main material
Polyamide (PA)
Colour
Black, RAL 9005
Insulation resistance
≥ 10 GΩ
Mechanical life
≥ 500 mating cycles
Weight
1 g
EAN
8015747096096
RoHS conformity
Compliant
