Why Choose the ILME CX6.0PM Male MIXO Pneumatic Contact?

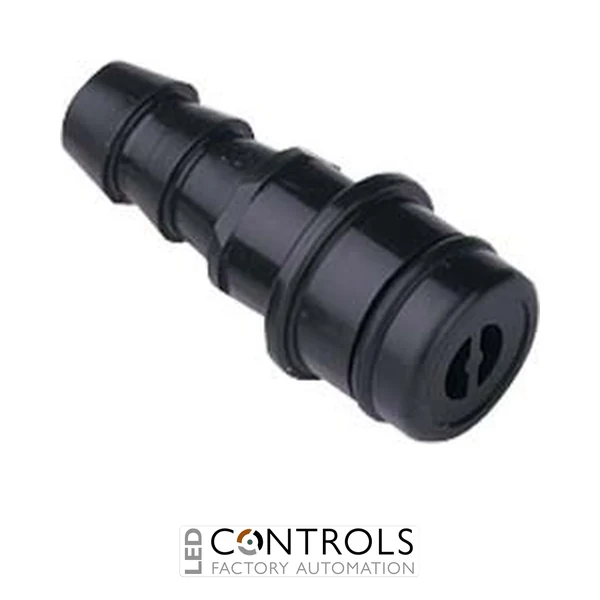

The ILME CX6.0PM is a male pneumatic contact designed for the ILME MIXO modular connector system, enabling compressed-air lines to be incorporated alongside electrical, signal and data connections within a single heavy-duty industrial connector assembly. It is specifically designed for pneumatic tubing with an internal diameter of 6 mm.
The CX6.0PM features a straight plug-in pneumatic connection and is supplied without a closing valve. Its thermoplastic polyamide construction provides a lightweight and durable connection solution for industrial pneumatic circuits, while the detachable MIXO architecture can simplify machine installation, servicing and equipment replacement.
With an operating temperature range of -40 °C to +125 °C, a weight of just 1.32 g and RoHS-compliant construction, the CX6.0PM is suited to industrial machinery and automation applications requiring compact pneumatic connectivity. It is compatible with appropriate ILME MIXO pneumatic modules, including the CX02P module.
Key Advantages
- Male pneumatic contact for ILME MIXO modular connector systems.
- Designed specifically for tubing with an internal diameter of 6 mm.
- Straight plug-in connection provides simple pneumatic tube installation.
- Supplied without a closing valve for applications where automatic shut-off is not required.
- Lightweight polyamide construction provides durability with minimal connector weight.
- Wide operating temperature range from -40 °C to +125 °C.
Key Features
- ILME MIXO pneumatic connection system.
- Male pneumatic contact.
- 6 mm internal-diameter tube compatibility.
- Straight configuration.
- Plug-in pneumatic tube connection.
- Supplied without closing valve.
- Polyamide (PA) main material.
- Operating temperature from -40 °C to +125 °C.
- RoHS compliant.
- Designed for installation in compatible ILME MIXO pneumatic modules.
Compact Pneumatic Connections for Industrial Automation
ILME MIXO pneumatic technology enables compressed-air circuits to share the same configurable connector assembly as electrical power, control, signal and data services. The CX6.0PM provides a detachable male pneumatic connection for tubing with a 6 mm internal diameter, helping simplify the installation and maintenance of machinery with combined electrical and pneumatic systems.
Because the CX6.0PM is supplied without a closing valve, it is suited to applications where automatic isolation of the pneumatic line is unnecessary or handled elsewhere in the system. When installed in a compatible MIXO pneumatic module and enclosure, it provides a compact and serviceable interface for industrial compressed-air connections.
Typical Applications
- Industrial machinery and machine building.
- Pneumatic automation systems.
- Compressed-air control circuits.
- Robotics and automated production equipment.
- Packaging and material handling machinery.
- Combined electrical and pneumatic MIXO connector assemblies.
