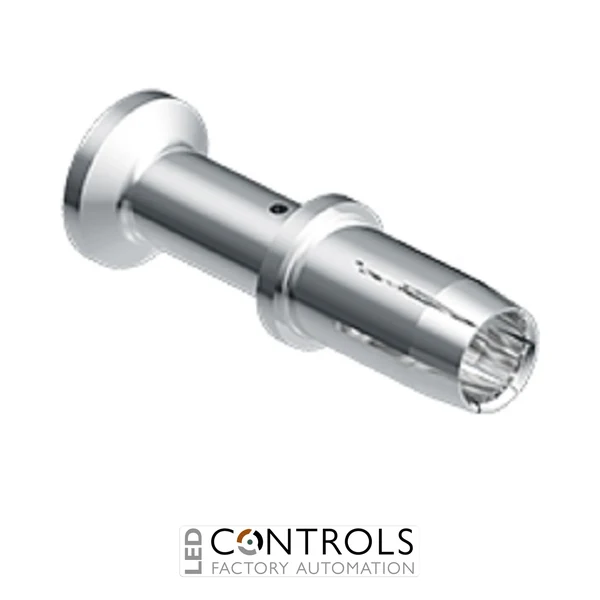

ILME CX7FA6.0 is a 70 A female turned crimp contact manufactured from silver-plated copper alloy for 6 mm² AWG 10 conductors in compatible ILME heavy-duty connector inserts.
SKU:CX7FA6.0Alt SKU:CX7FA6.0MPN:CX7FA 6.0
Price
List Price£8.64ex VAT
Your Price (ex VAT)
£8.64
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
Why Choose the ILME CX7FA6.0 Female Crimp Contact?
The ILME CX7FA6.0, manufacturer part number CX7FA 6.0, is a high-current female crimp contact from the ILME CX7 series. Rated at 70 A and specifically designed for 6 mm² conductors, it provides a robust removable electrical connection for compatible ILME heavy-duty and MIXO connector inserts.
The CX7FA6.0 is a precision turned copper-alloy contact with silver plating. Its crimp termination creates a mechanically secure and low-resistance conductor connection when installed using suitable ILME-approved tooling. The contact accommodates 6 mm² / AWG 10 conductors and requires a conductor stripping length of 15 mm.
With contact resistance of no more than 0.5 mΩ and mechanical durability of at least 500 mating cycles, the CX7FA6.0 is engineered for dependable high-current industrial connections. It is particularly suited to machinery, automation and power applications where a serviceable 70 A connector interface is required.
Key Advantages
High-current 70 A female crimp contact for demanding industrial connections.
Designed specifically for 6 mm² / AWG 10 conductors.
Silver-plated copper-alloy construction supports reliable electrical conductivity.
Low contact resistance of ≤0.5 mΩ.
Precision turned construction provides a robust and repeatable mating interface.
Designed for compatible ILME CX7 heavy-duty connector applications.
Key Features
ILME CX7 series.
Female crimp contact.
70 A rated current.
Designed for 6 mm² conductors.
AWG 10 conductor size.
Crimp termination.
Precision turned contact.
Copper-alloy contact material.
Silver-plated contact surface.
≤0.5 mΩ contact resistance.
Specified conductor stripping length of 15 mm.
Mechanical life of at least 500 mating cycles.
Reliable 70 A Crimp Connections for Industrial Power
The ILME CX7FA6.0 is designed to provide a secure high-current connection through precision crimp termination. A 6 mm² / AWG 10 conductor is stripped to the specified 15 mm length, inserted into the contact barrel and crimped with appropriate tooling. ILME recommends using homologated crimping tools to achieve the required mechanical retention and electrical performance.
The combination of a precision turned copper-alloy body and silver-plated mating surface provides a contact resistance of ≤0.5 mΩ. When installed in a compatible ILME insert and paired with the corresponding CX7 male contact, the CX7FA6.0 creates a durable, removable 70 A electrical interface suitable for industrial equipment that may require installation, maintenance or replacement in the field.
Tick the specs you need, then view products that match.
Connection
Crimp
Device Type
Contact
Product Series
ILME C-Type
Contact Gender
Female
HS Code
85369010
Country of Manufacture
Italy
Manufacturer
ILME
Series
CX7
Model
CX7FA6.0 / CX7FA 6.0
Product type
Crimp contact
Gender
Female
Contact type
Turned, silver plated
Termination type
Crimp
Rated current
70 A
Wire cross-section
6 mm²
AWG size
10
Conductor stripping length
15 mm
Conductor entry diameter
3.5 mm
Contact resistance
≤0.5 mΩ
Contact material
Copper alloy
Contact plating
Silver plated
Mechanical life
≥500 mating cycles
Weight
8.50 g
RoHS conformity
Compliant with exemption 6(c)
REACH SVHC
Contains lead
Certification
EAC
UL classification
ECBT2
cUL classification
ECBT8
EAN13
8015747271929
Frequently Asked Questions
What is the ILME CX7FA6.0?
The CX7FA6.0 is a female turned crimp contact from the ILME CX7 series, rated at 70 A and designed for 6 mm² conductors in compatible ILME connector inserts.
What cable size is the CX7FA6.0 designed for?
The CX7FA6.0 is specifically designed for 6 mm² conductors, corresponding to AWG 10.
What is the current rating of the CX7FA6.0?
The ILME CX7FA6.0 is rated at 70 A and has a specified contact resistance of no more than 0.5 mΩ.
What material and plating does the CX7FA6.0 use?
The CX7FA6.0 is a precision turned copper-alloy contact with silver plating, providing a durable and highly conductive mating surface for industrial power connections.
How much insulation should be stripped when crimping the CX7FA6.0?
ILME specifies a conductor stripping length of 15 mm for the CX7FA6.0. ILME-approved crimping tooling should be used to produce the intended mechanical and electrical connection.
