Why Choose the ILME CX7FA25 Female Crimp Contact?

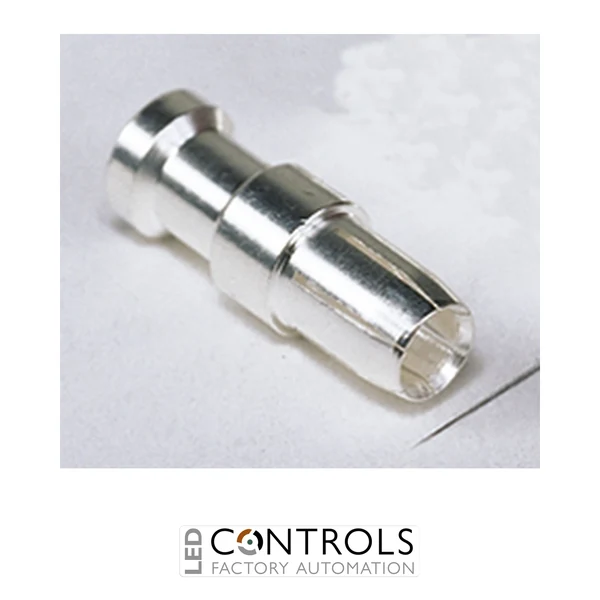

The ILME CX7FA25, manufacturer part number CX7FA 25, is a high-current female crimp contact designed for compatible ILME heavy-duty connector inserts. Part of the ILME CX7 contact range, it is rated at 70 A and is specifically sized for 25 mm² conductors, making it suitable for demanding industrial power connections.
The CX7FA25 is a precision turned contact manufactured from copper alloy with silver plating. Its crimp termination provides a mechanically secure, low-maintenance connection between the conductor and contact when assembled using suitable ILME crimping equipment. The 25 mm² conductor size corresponds to the AWG 4–3 range specified by ILME.
Designed for heavy-duty industrial connector applications, the CX7FA25 combines a 70 A current rating with robust turned-contact construction and a specified conductor stripping length of 15 mm. It is suitable for compatible ILME inserts that use CX7 70 A removable contacts and provides a dependable solution for machinery, power distribution and industrial equipment connections.
Key Advantages
- High-current 70 A female crimp contact for demanding industrial connections.
- Designed specifically for 25 mm² conductors.
- Silver-plated copper-alloy contact supports reliable electrical conductivity.
- Precision turned-contact construction provides a robust mating interface.
- Crimp termination creates a secure connection without terminal screws.
- Designed for compatible ILME heavy-duty connector inserts using CX7 contacts.
Key Features
- ILME CX7 contact series.
- Female contact.
- 70 A rated current.
- Designed for 25 mm² cable conductors.
- AWG 4–3 conductor range.
- Crimp termination.
- Precision turned contact.
- Copper-alloy contact material.
- Silver-plated contact surface.
- Specified conductor stripping length of 15 mm.
- Mechanical durability of at least 500 mating cycles when used within the appropriate connector system.
- Suitable for heavy-duty industrial power connector applications.
Reliable 70 A Crimp Connections for Industrial Power
The ILME CX7FA25 uses a crimped conductor connection rather than a screw terminal. A correctly prepared 25 mm² conductor is stripped to the specified 15 mm length, inserted into the contact barrel and crimped using suitable tooling. The resulting connection provides the mechanical retention and electrical continuity required for high-current industrial connector applications.
Its silver-plated copper-alloy construction combines the strength of a precision turned contact with a conductive mating surface suitable for repeated industrial connector use. When paired with the correct male CX7 contact and installed in a compatible ILME insert, the CX7FA25 provides a removable 70 A connection suitable for equipment that requires robust, serviceable high-current interfaces.
Typical Applications
- Heavy-duty industrial power connectors.
- Industrial machinery and machine building.
- Factory automation equipment.
- Motor and drive power connections.
- Power distribution and control equipment.
- Production and processing machinery.
- High-current detachable equipment interfaces.
