Why Choose the Ilme CX7MA6.0 Male Crimp Contact?

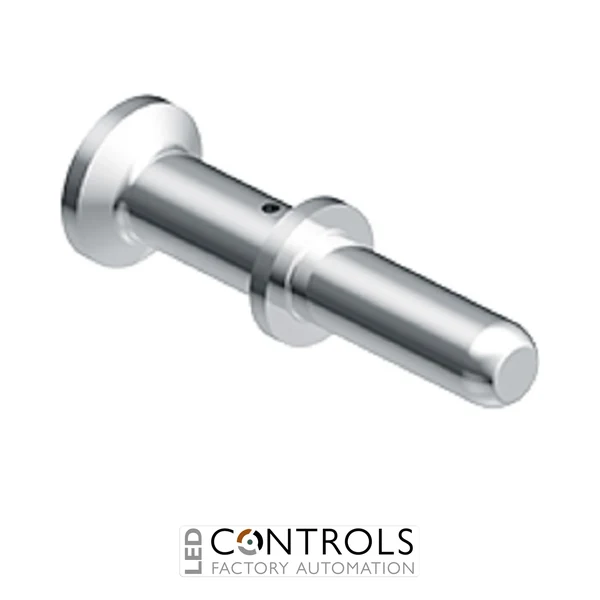

The Ilme CX7MA6.0 is a high-current male crimp contact designed for compatible ILME CX7 and MIXO modular connector systems. Rated at 70 A, this precision-turned contact is intended for 6 mm² conductors and provides a robust detachable power connection for industrial machinery, automation equipment and heavy-duty connector assemblies.
Manufactured from copper alloy with silver plating, the CX7MA6.0 combines high electrical conductivity with a durable mating surface. Its crimp termination provides a secure mechanical and electrical connection when installed using suitable ILME-approved crimping equipment, making it well suited to industrial applications where dependable high-current connections are essential.
The CX7MA6.0 accommodates 6 mm² / AWG 10 conductors and has a specified contact resistance of no more than 0.5 mΩ. With a mechanical life of at least 500 mating cycles and an operating temperature range from -40 °C to +125 °C, it is engineered for reliable operation in demanding industrial environments.
Key Advantages
- High-current 70 A male crimp contact for industrial power connections.
- Designed specifically for 6 mm² / AWG 10 conductors.
- Silver-plated copper-alloy contact provides reliable electrical conductivity.
- Low contact resistance of ≤0.5 mΩ.
- Mechanical durability of at least 500 mating cycles.
- Wide operating temperature range from -40 °C to +125 °C.
- Designed for compatible ILME CX7 and MIXO modular connector systems.
Key Features
- ILME CX7 series high-current contact.
- Male contact configuration.
- 70 A rated current.
- 6 mm² conductor cross-section.
- AWG 10 conductor size.
- Crimp termination.
- Precision turned contact.
- Silver-plated copper-alloy construction.
- 15 mm conductor stripping length.
- Contact resistance of ≤0.5 mΩ.
Reliable High-Current Connectivity for Industrial Equipment
High-current crimp contacts provide secure detachable electrical connections within heavy-duty industrial connector systems. A correctly executed crimp creates a mechanically robust, low-resistance connection between the conductor and contact without relying on screw clamping, helping maintain dependable performance in machinery subject to vibration, servicing and repeated connection cycles.
The Ilme CX7MA6.0 is designed for compatible CX7 applications including ILME MIXO 70 A modular inserts. Its combination of a 70 A current rating, silver-plated contact surface and 6 mm² conductor capacity makes it suitable for carrying substantial power loads through compact modular industrial connector assemblies.
Typical Applications
- ILME MIXO modular connector assemblies.
- Heavy-duty industrial power connectors.
- Industrial machinery power connections.
- Factory automation and production equipment.
- Motor, drive and actuator connections.
- Material handling and conveyor systems.
- OEM machine building and industrial control equipment.
