Why Choose the Ilme CX7MA10 Male 70 A Crimp Contact?

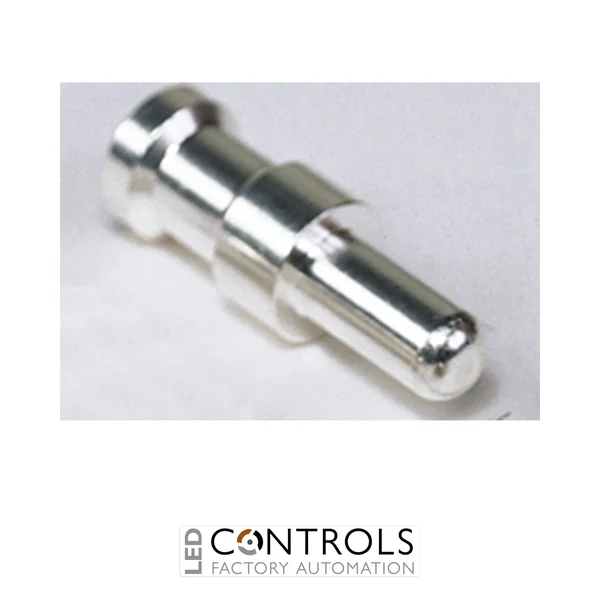

The Ilme CX7MA10 is a high-current male crimp contact designed for reliable electrical connections in heavy-duty industrial connector systems. Part of the Ilme CX7 contact series, it features a precision-turned, silver-plated contact surface and is engineered for demanding power connections in industrial machinery, automation equipment and control systems.
Designed for conductors with a cross-sectional area of 10 mm², the CX7MA10 provides a secure crimp termination capable of carrying a rated current of 70 A. The silver-plated copper-alloy contact construction provides excellent electrical conductivity and dependable connection performance, making it suitable for applications where high current capacity and long-term reliability are essential.
The CX7MA10 accepts 10 mm² conductors, corresponding to approximately AWG 8–7, and requires a conductor stripping length of 15 mm. Its male contact configuration is designed for compatible Ilme connector inserts, including CXC applications, providing machine builders and electrical engineers with a robust solution for high-power modular connections.
Key Advantages
- High-current male crimp contact rated at 70 A.
- Designed specifically for 10 mm² conductors.
- Precision turned silver-plated contact for dependable electrical performance.
- Secure crimp termination suitable for demanding industrial environments.
- Copper-alloy contact construction provides excellent electrical and mechanical performance.
- Suitable for Ilme heavy-duty modular connector applications in machinery and automation systems.
Key Features
- Ilme CX7 series male power contact.
- 70 A rated current.
- 10 mm² wire cross-section.
- Suitable for approximately AWG 8–7 conductors.
- Crimp termination for secure conductor attachment.
- Precision turned contact construction.
- Silver-plated contact surface.
- Copper-alloy contact material.
- 15 mm conductor stripping length.
- Designed for heavy-duty industrial connector applications.
Reliable High-Current Connectivity for Industrial Machinery
Crimp contacts such as the Ilme CX7MA10 provide a mechanically secure and electrically efficient method of terminating power conductors within heavy-duty industrial connector assemblies. Correct crimping creates a robust connection between the conductor and contact, helping maintain dependable electrical performance in machinery exposed to vibration, repeated connection cycles and demanding operating conditions.
With its 70 A current rating, 10 mm² conductor capacity and silver-plated contact surface, the CX7MA10 is particularly well suited to higher-power connections in industrial equipment. Its compatibility with Ilme modular connector solutions allows power circuits to be incorporated into organised, serviceable connector assemblies for machine building and factory automation.
Typical Applications
- Heavy-duty industrial connector assemblies.
- Industrial machinery and production equipment.
- Motor and high-current power connections.
- Factory automation and control systems.
- Material handling and conveyor equipment.
- OEM machine building and modular power distribution.
